**Specifications:**

**Brand:** PHANTEKS

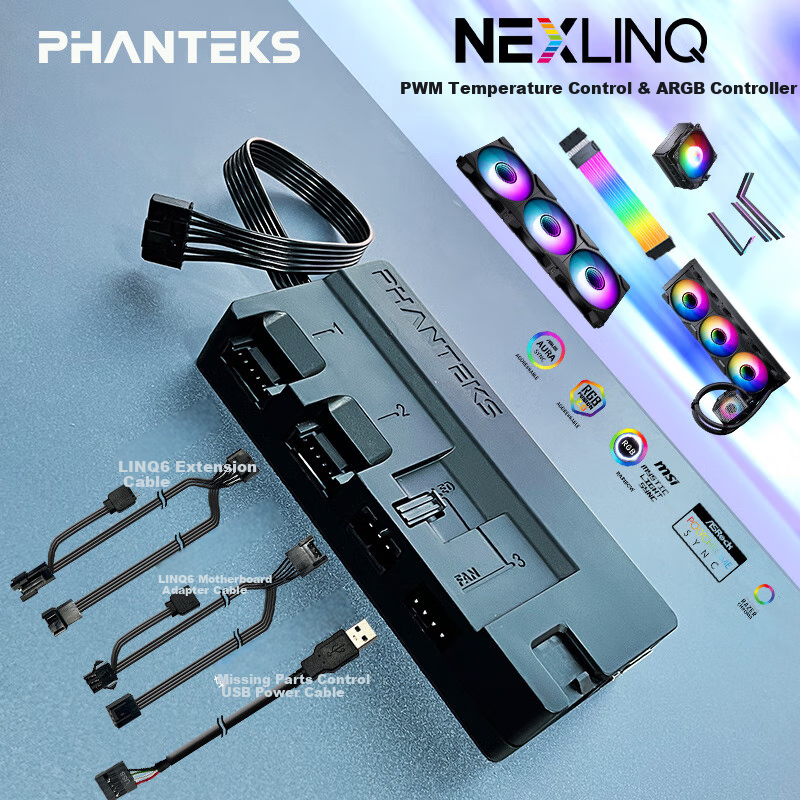

**Product Name:** NEXLINQHUB ARGB Lighting & Fan PWM Controller

**Features:**

- Supports ARGB lighting control and PWM fan speed control

- Compatible with RGB products from MSI, ASRock, NEXLINQ, AURA, POLYCHROME 2.0, YNC, RAZER, ADRESSABLE ARGB

- Magnetic mounting for easy installation

- Temperature monitoring and simple wiring

- Integration with NEXLINQ ecosystem for controlling D30 fans, liquid coolers, ARGB strips, and cases

- Supports synchronization of ARGB and PWM products

- Compatible with a wide range of ARGB and 5V 3-pin ARGB products

- Supports all 4-pin PWM temperature-controlled fan speeds

**Control Options:**

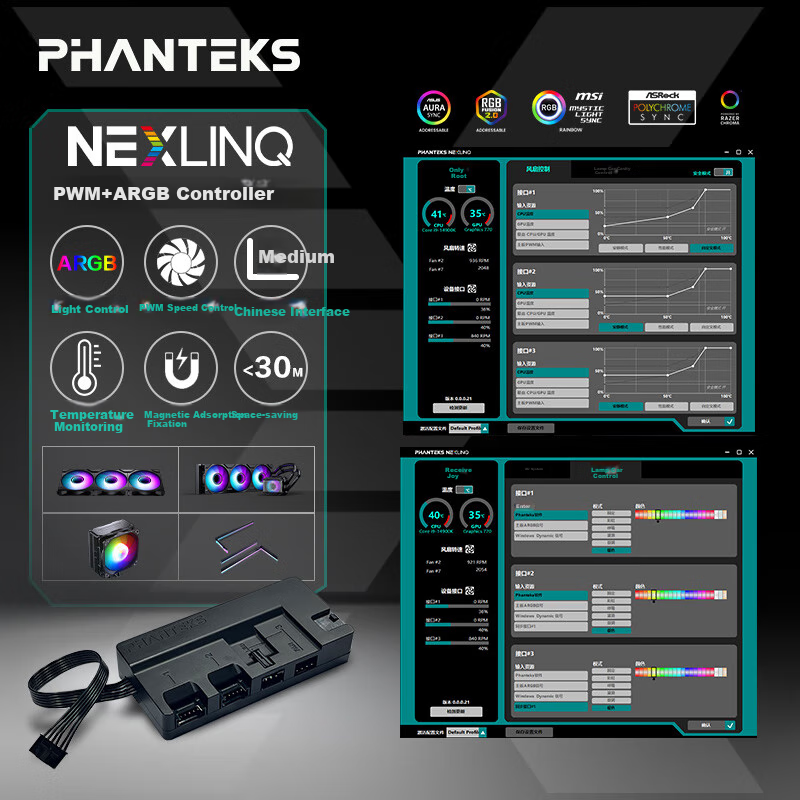

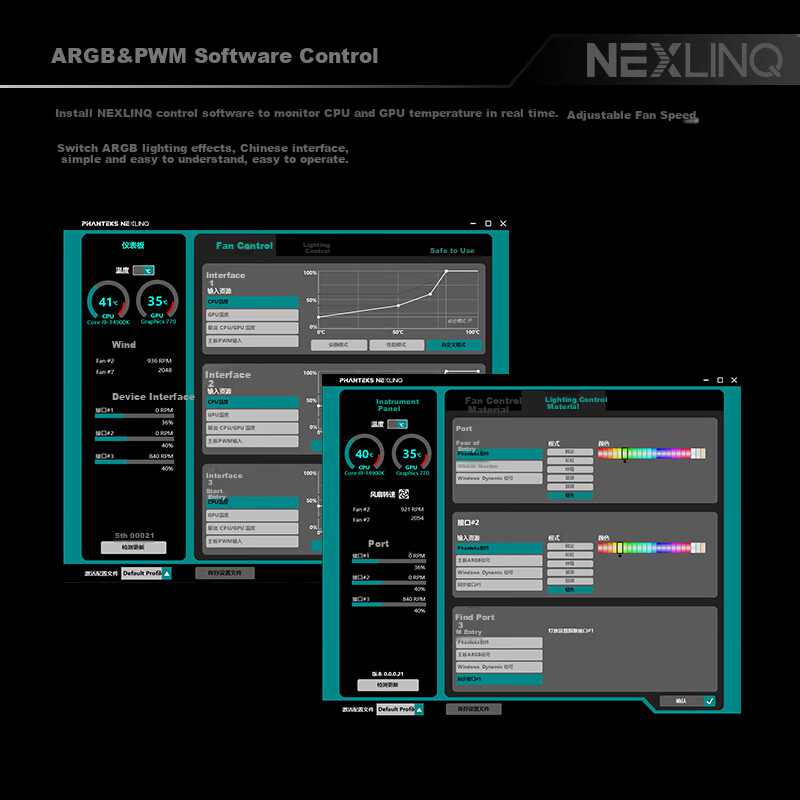

- Can be controlled via NEXLINQ software or third-party software through a hub

- Allows for synchronized lighting effects and PWM temperature control with compatible software such as RGB, MSI, ASRock, AURA, POLYCHROME 2.0, SYNC, RAZER, ADORSSSAILE, ACORISSALE

**Connectivity:**

- Multiple fan connections with LINQ6 hub

- LINQ6 extension cables for flexible setup

- Supports various interfaces for different types of connections

**Technical Details:**

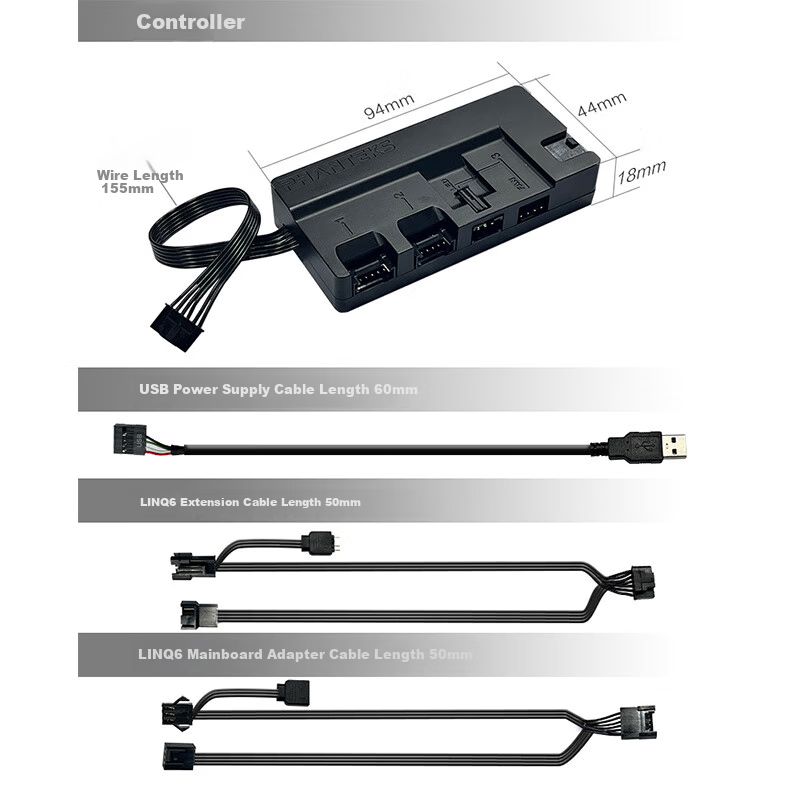

- Dimensions: 94.5 x 45 x 18mm (L x W x H)

- Color: Black

- Material: ABS

- Power Input: PCI-E 6-pin

- Input Voltage: 12V DC, 9A

- Rated Input Power: 108W

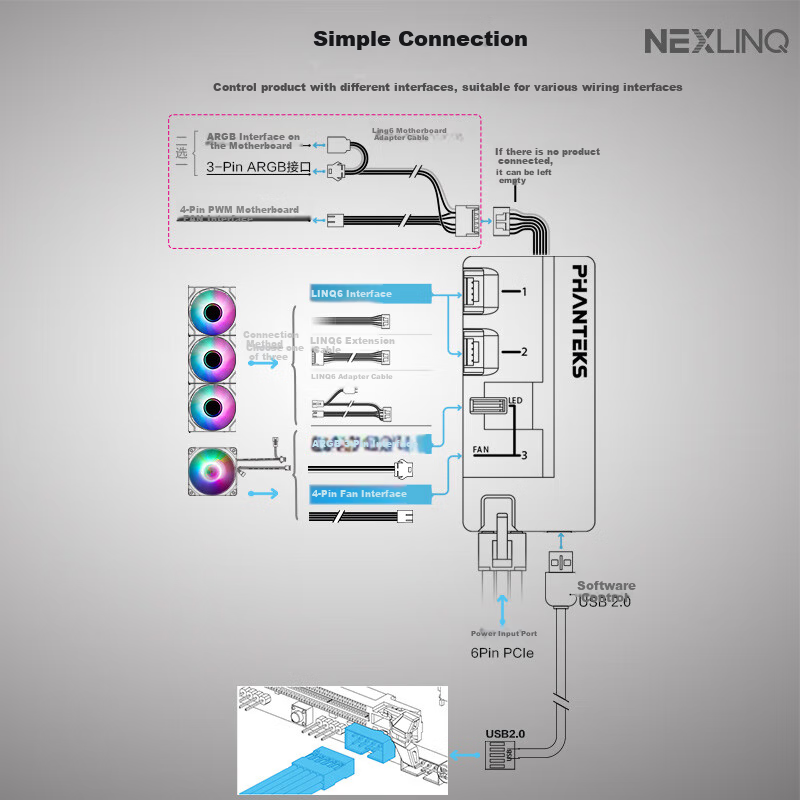

- Output Interfaces: Port 1 & 2: LINQ6 connectors, Port 3: 4-pin PWM + ARGB 3-pin JST

- Rated Output: 12V DC/1.5A (per port), 5V DC/3A (per port)

- Total Output Power: 100W

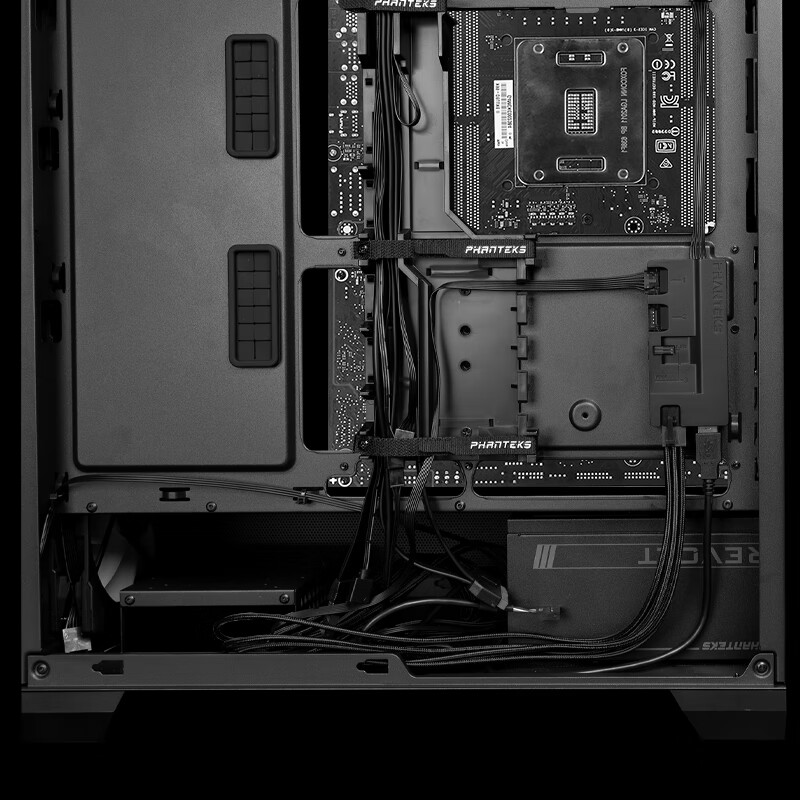

- Installation: Magnetic or adhesive mounting

- Package Dimensions: 132 x 125 x 49mm (L x W x H)

- Net Weight: 58.1 ± 5g

- Gross Weight: 168.5 ± 5g

- Safety Certifications: FCC/CE/LVD

- Warranty: 2 years
