**Product Specifications:**

**Brand:** KSRGB

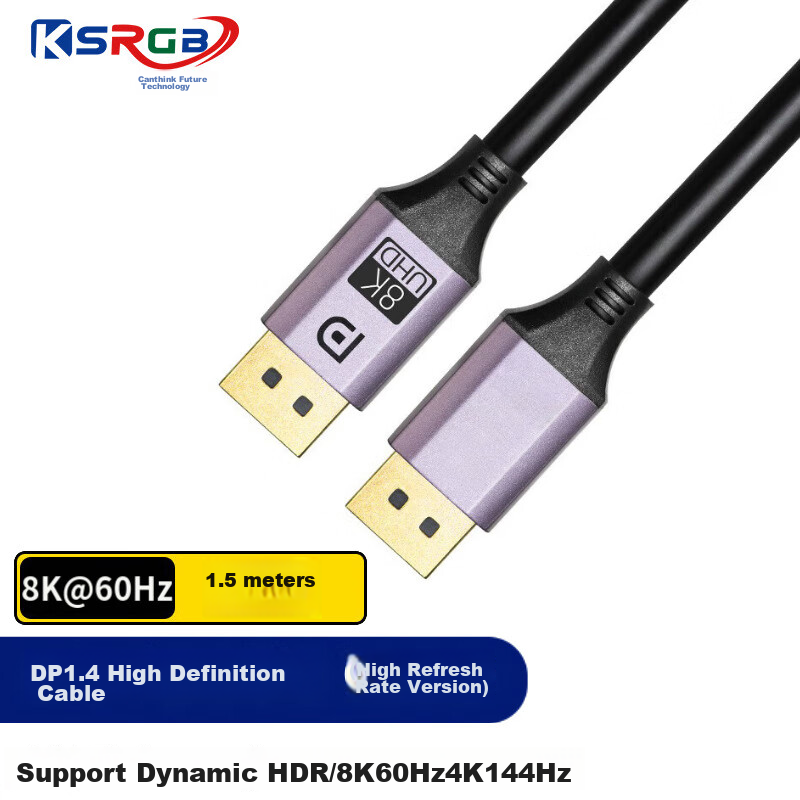

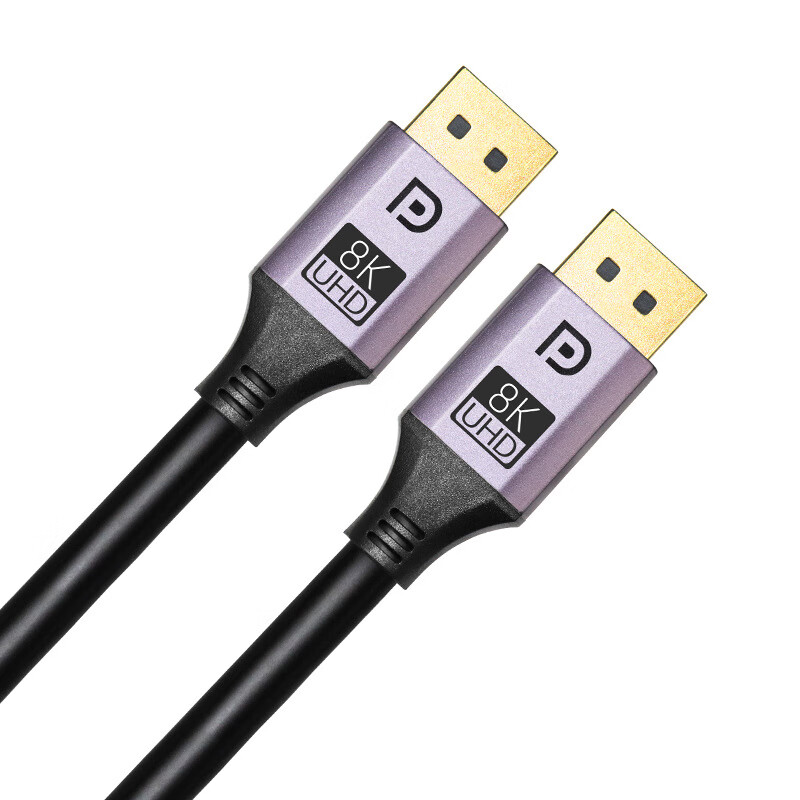

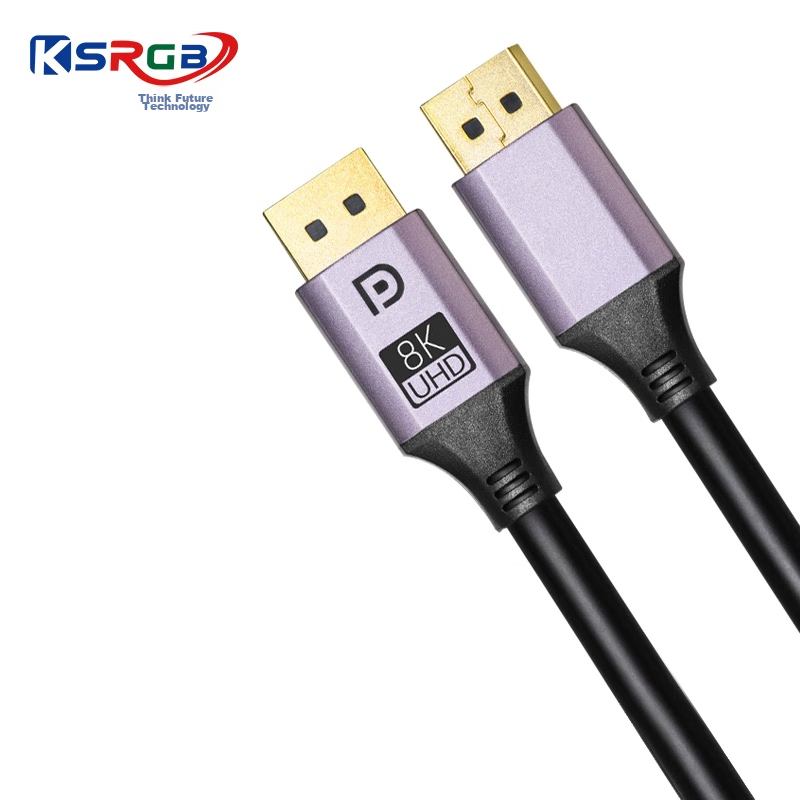

**Product Name:** DP 1.4 High Definition Cable

**Material:** Aluminum Shell

**Connector:** DisplayPort Male to DisplayPort Male

**Resolution:** Supports 8K/60Hz, 4K/144Hz, 2K/165Hz

**Power Supply:** No external power required

**Interference Shielding:** 3 layers (to prevent signal interference from external sources)

**Operating/Storage Temperature:** 0~50°C / -20-70°C

**Additional Information:**

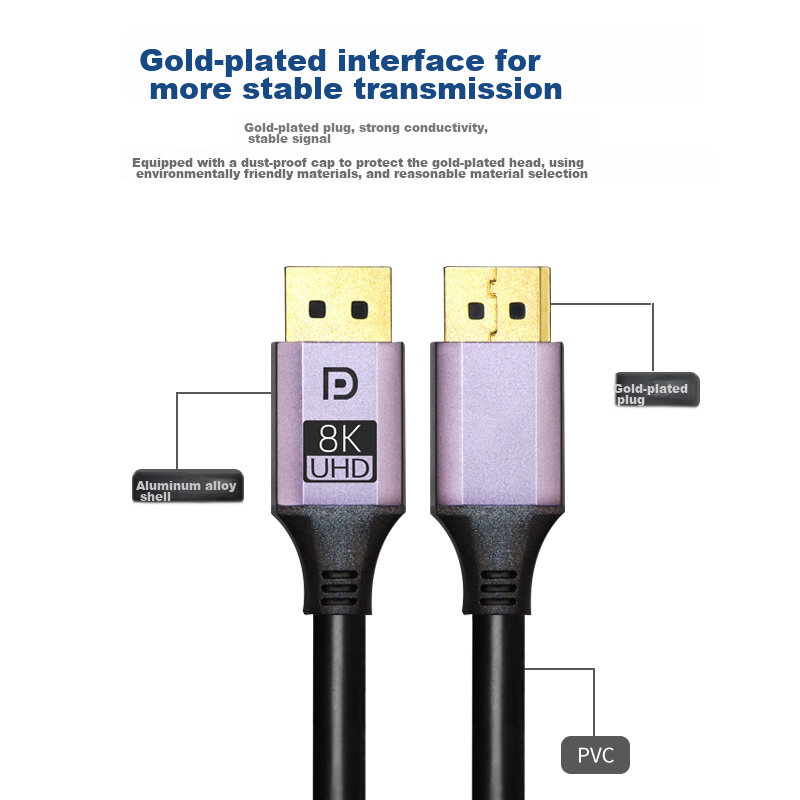

Gold-plated connectors for stable transmission

Supports HDR for detailed and realistic images

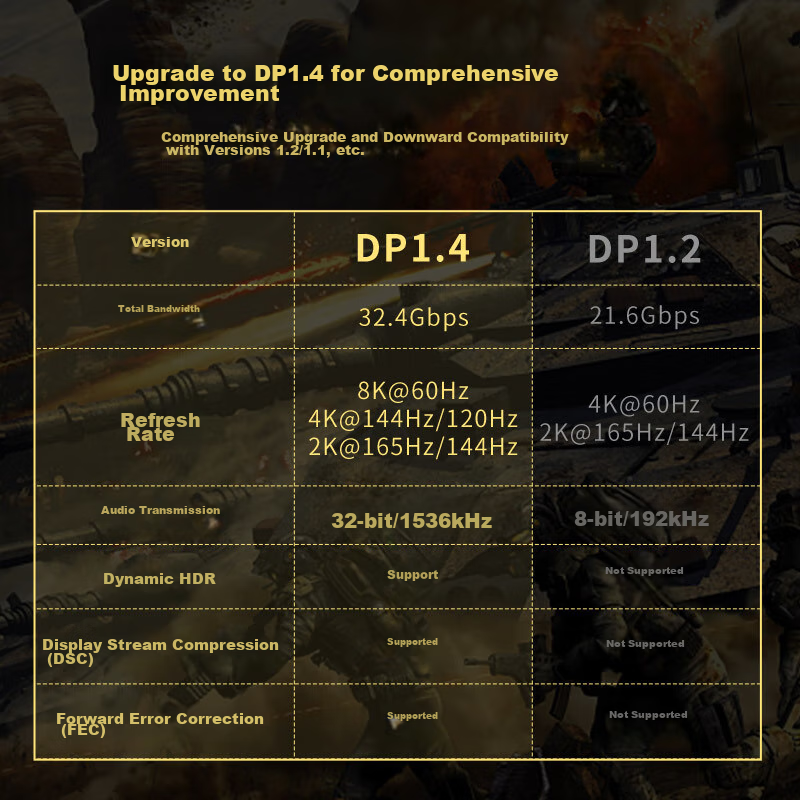

High bandwidth of 32.4Gbps for fast and strong transmission

3D imaging technology for immersive experience

Audio and video synchronous output with rich and delicate sound levels

Multiple shielding against interference for stable transmission

Length: 500±20mm, 1500±30mm, 3000±60mm

Resolution: 3840*2160P 144Hz

**Testing Conditions:**

1. 100% short/circuit test

2. Impedance test: 30hms

3. Insulation resistance ≥5MQ

4. Voltage test: DC: 300VAC: 200V 0.01S

5. Display test: 3840*2160P 144Hz

**Pin Assignment:**

Brown 1, Black 15, White 3, White 17, Red 4, Red 13, Yellow 14, Green 7, Green 19, Blue 10, White 12, White 18

**Package Contents:**

DP 1.4 High Definition Cable

User Manual

**Note:** For detailed technical specifications and compatibility, please refer to the user manual provided with the product.
