Specifications:
Brand: EB-LINK

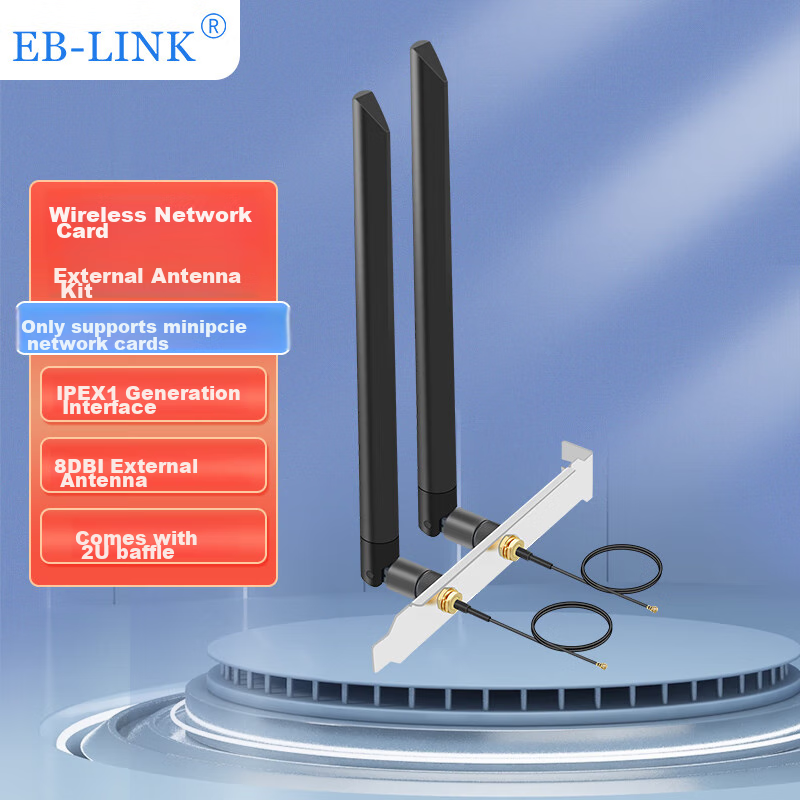

Product Name: Network Card Antenna
Wireless Network Card with External High-Frequency Antenna
Generation: IPEXI
Interface: IPEX1
Compatible with MiniPCI-e Interface Network Cards
Antenna Type: 8DBI Dual-Frequency Antenna
Bluetooth Version: 5.1

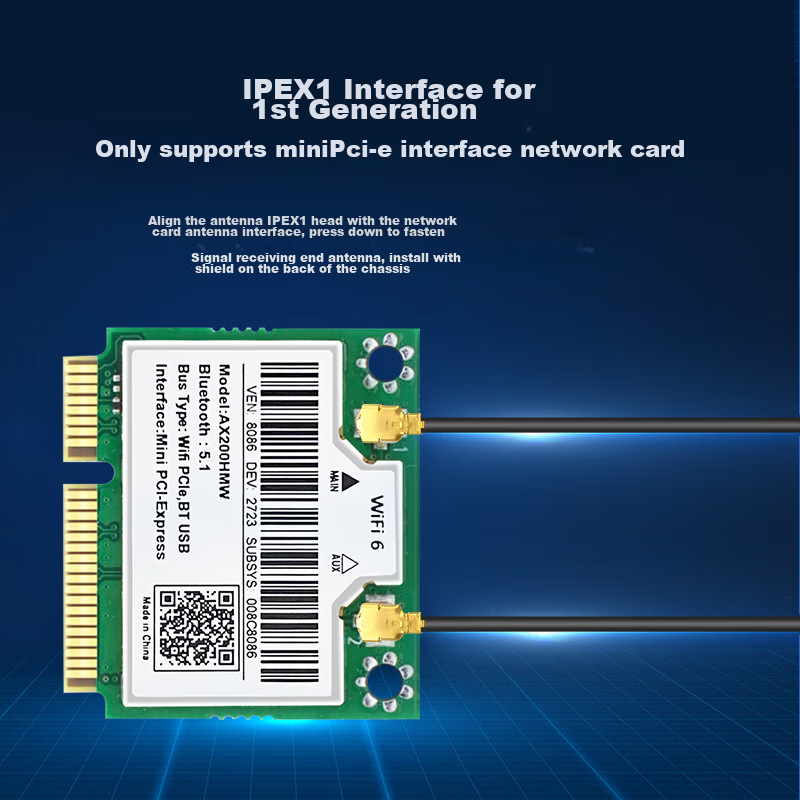

Model: AX200HMW
WiFi Standard: WiFi6
Bus Type: WifPCle, BTUSB
Wireless Signal Enhancement

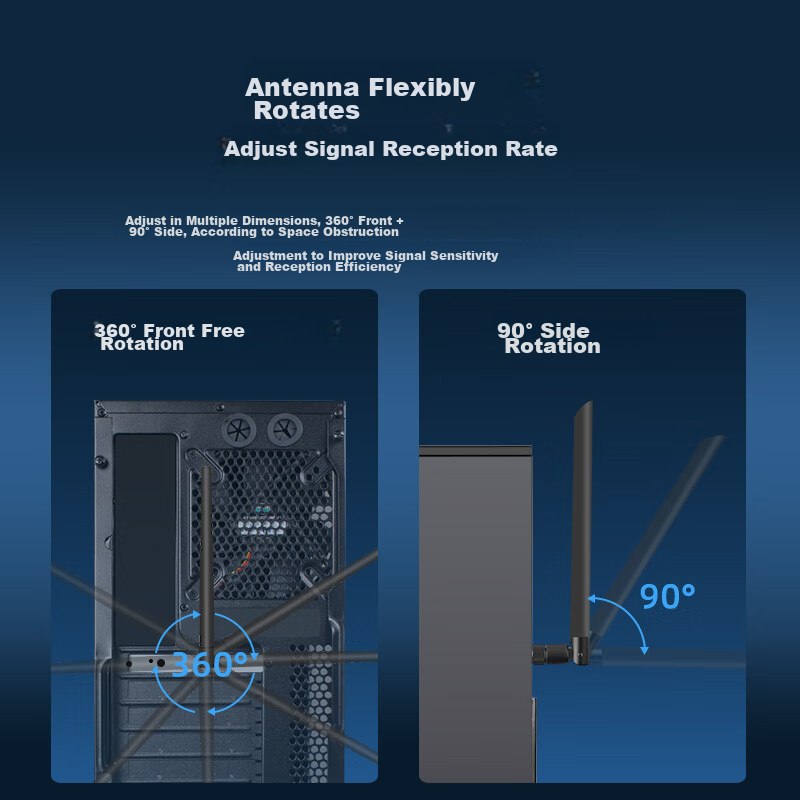

Flexible Rotation of Antenna for Signal Adjustment
Long and Short Baffles for Different Case Sizes
SMA External Thread Inner Pin, IPEX1 Interface
Installation Guide Included
Features:
High antenna gain for stronger signal reception
Wide coverage and signal penetration
Flexible antenna rotation for signal adjustment
Compatible with different case sizes
Easy installation process with detailed instructions
Installation Guide:
1. Open the computer cover and locate the installation position for the wireless network card.
2. Attach the network card antenna to the designated antenna interface.
3. Remove the corresponding baffle (4U or 2U) based on the case size.
4. Install the appropriate baffle.
5. Connect the antenna to the network card.
6. Follow the disassembly steps in reverse order to complete the installation.
7. Power on the computer and install the necessary drivers.
