**Product Specifications:**

**Brand:** H3C

**Model:** HSC MiniS16G-HP-L

**Type:** 16-port Gigabit high-power POE switch

**Rack Type:** 19-inch rack-mounted

**POE Power:** 225W

**Ports:** 16 Gigabit Ethernet ports

**Working Modes:** Multiple working modes including standard switching, port isolation, aggregation uplink, and network cloning

**Certifications:** EMC certified

**Features:** Green energy-saving, port lightning protection, built-in professional power supply

**Warranty:** 3 years

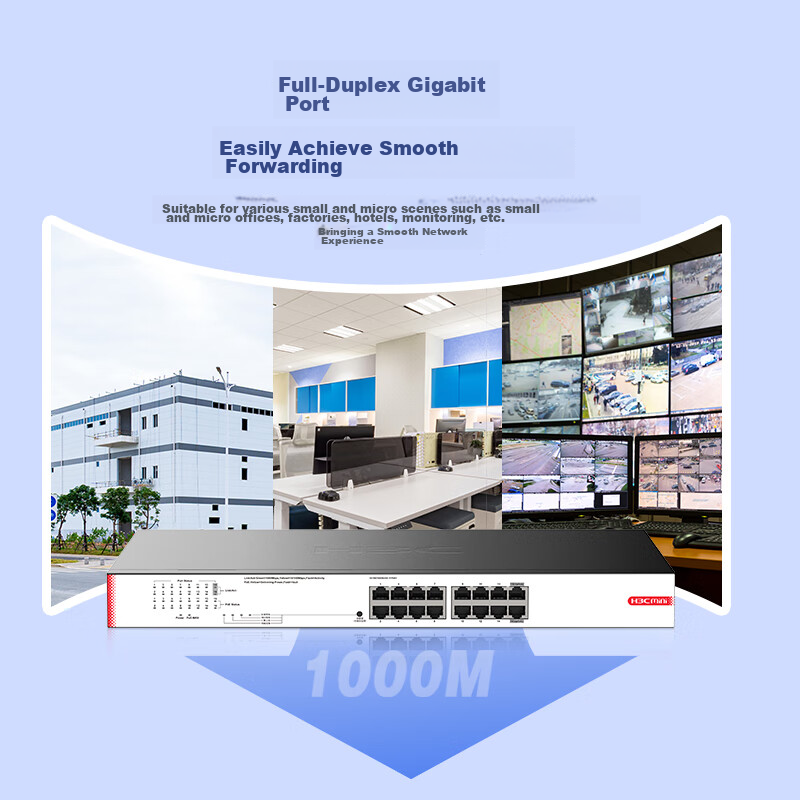

**Applications:** Suitable for small and medium offices, factories, hotels, surveillance, etc.

**Performance:** Supports smooth forwarding of Gigabit traffic

**Network Management:** AI intelligent watchdog function for automatic system restart in case of abnormalities

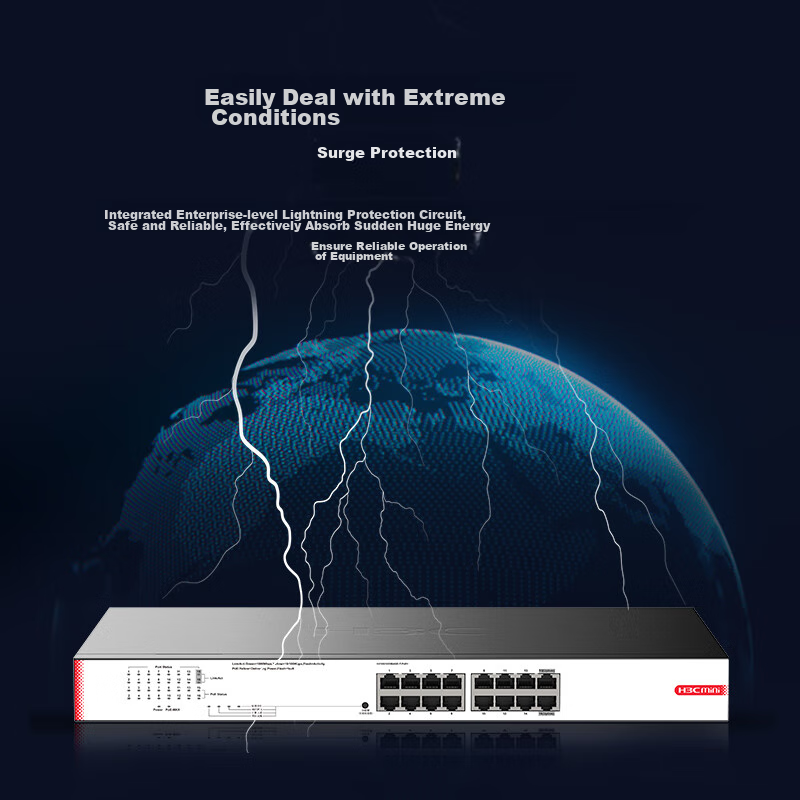

**Security:** Built-in enterprise-level lightning protection circuit to prevent network disruptions

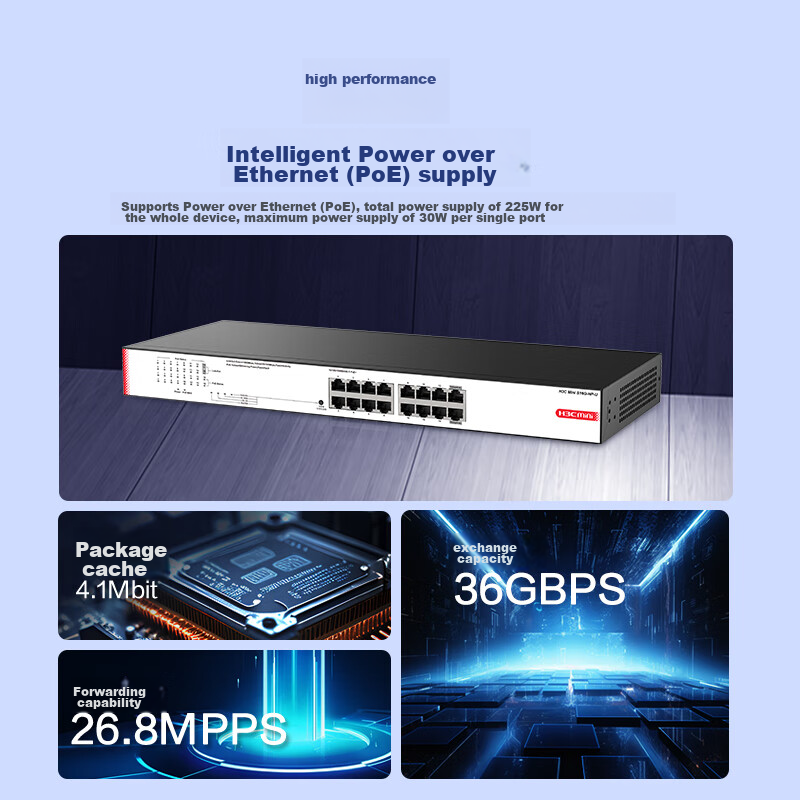

**Power Over Ethernet (POE):** Supports POE with a total power of 225W and a maximum power of 30W per port

**Switching Capacity:** 36Gbps

**Forwarding Rate:** 26.8Mpps

**MAC Table:** 8K entries

**Dimensions:** 440mm x 210mm x 44mm

**Fixed Ports:** 16 x 10/100/1000Base-T Ethernet ports

**Power Supply:** 100~240VAC

**Heat Dissipation:** Fan cooling system

**Operating Environment:** Metal casing with efficient heat dissipation design for stable operation in harsh conditions

**Note:** Requires pairing with H3C GR gateway router for configuration via web interface.
