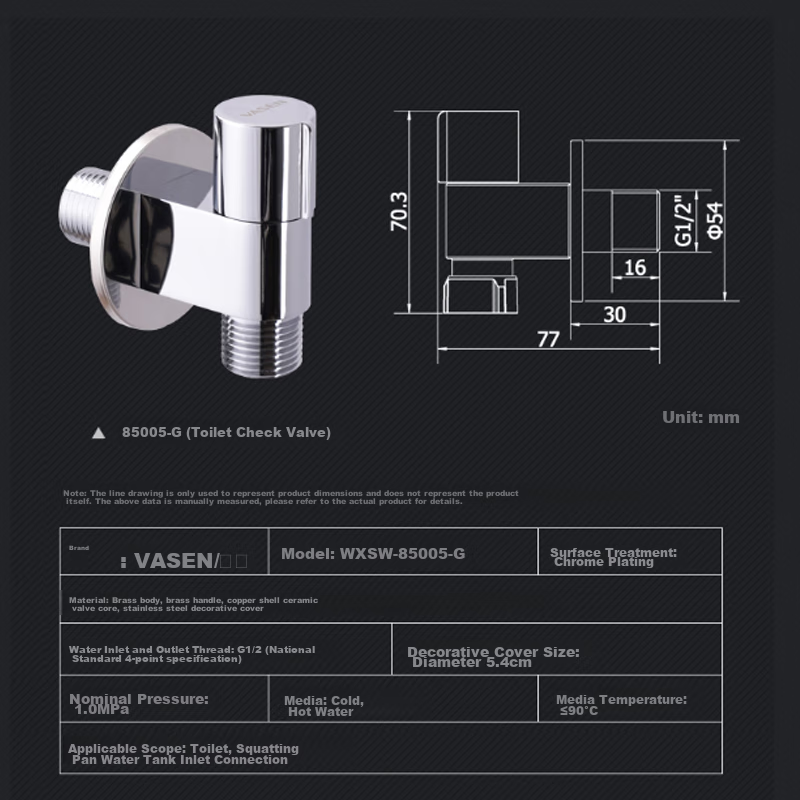

**Product Specifications**
**Brand:** VASEN
**Model:** WXSW-85005-G
**Surface Treatment:** Chrome-plated

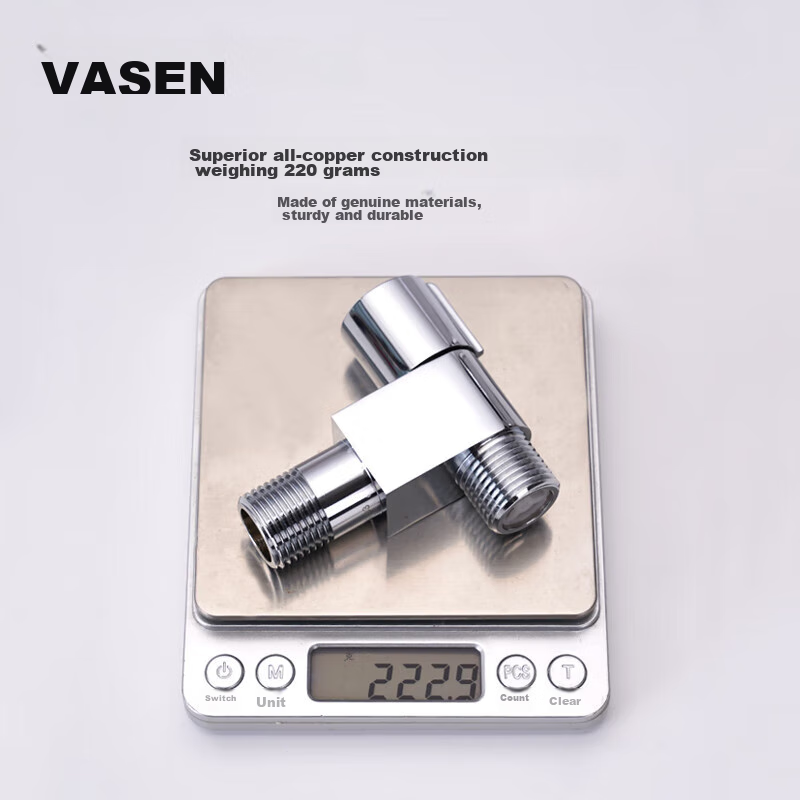

**Material:** Brass body, brass handle, copper shell ceramic valve core, stainless steel decorative cover
**Water Inlet/Outlet Thread:** G1/2 (standard 4-point specification)
**Decorative Cover Size:** Diameter 5.4cm
**Nominal Pressure:** 1.0MPa
**Media:** Cold and hot water
**Media Temperature:** ≤90°C
**Application:** Toilet, squatting pan water tank inlet connection
**Features:**

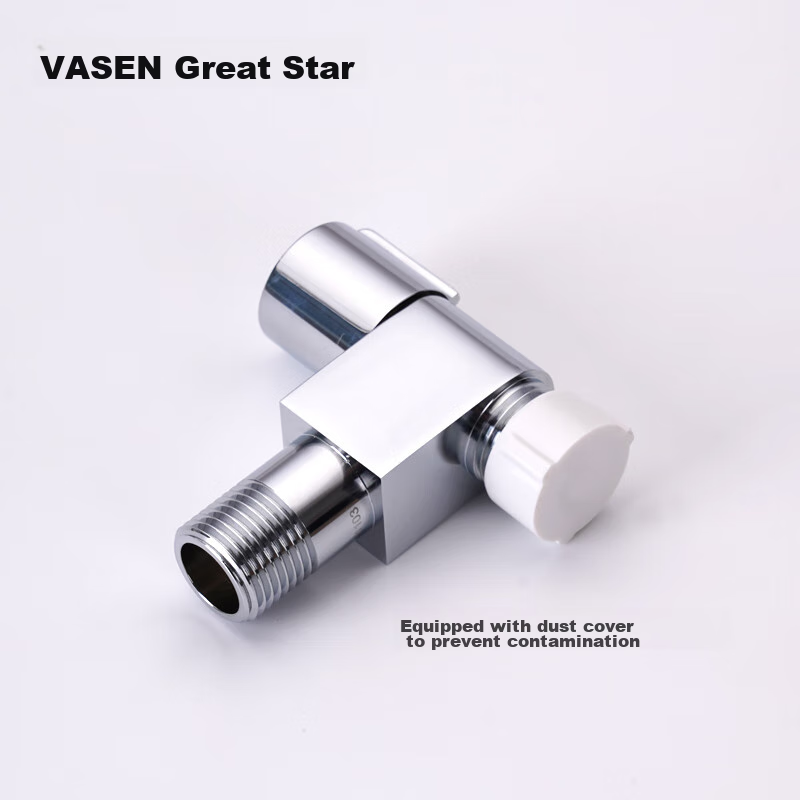

- Equipped with dust cover to prevent foreign objects from entering and damaging the check valve
- Equipped with enlarged stainless steel decorative cover to effectively shield the wall water outlet, with a diameter of up to 5.4cm
- Crystal diamond electroplating, corrosion-resistant and rust-proof

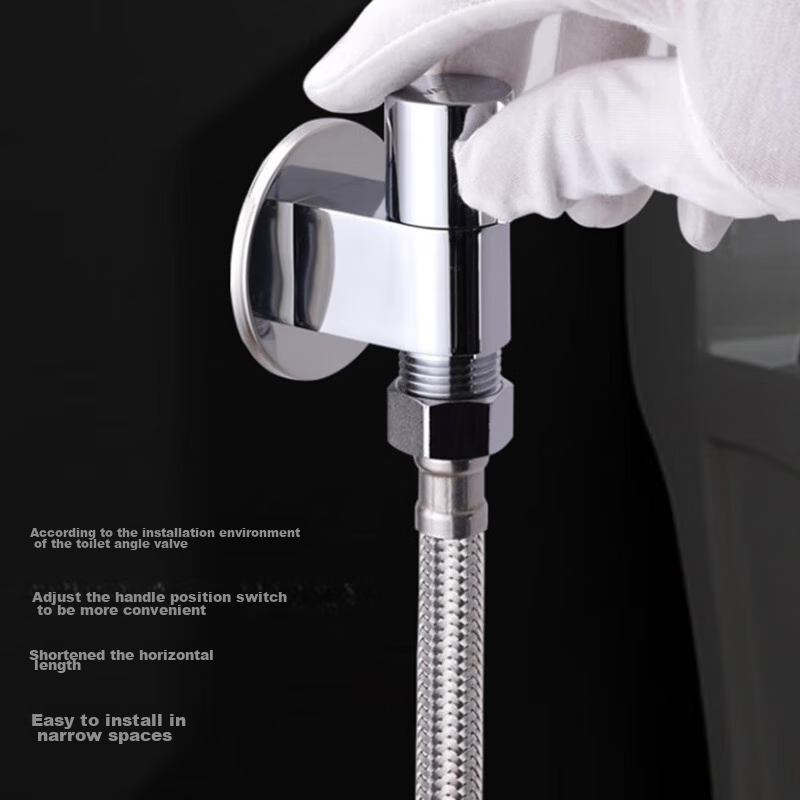

- Handle position adjusted for easier operation in narrow spaces

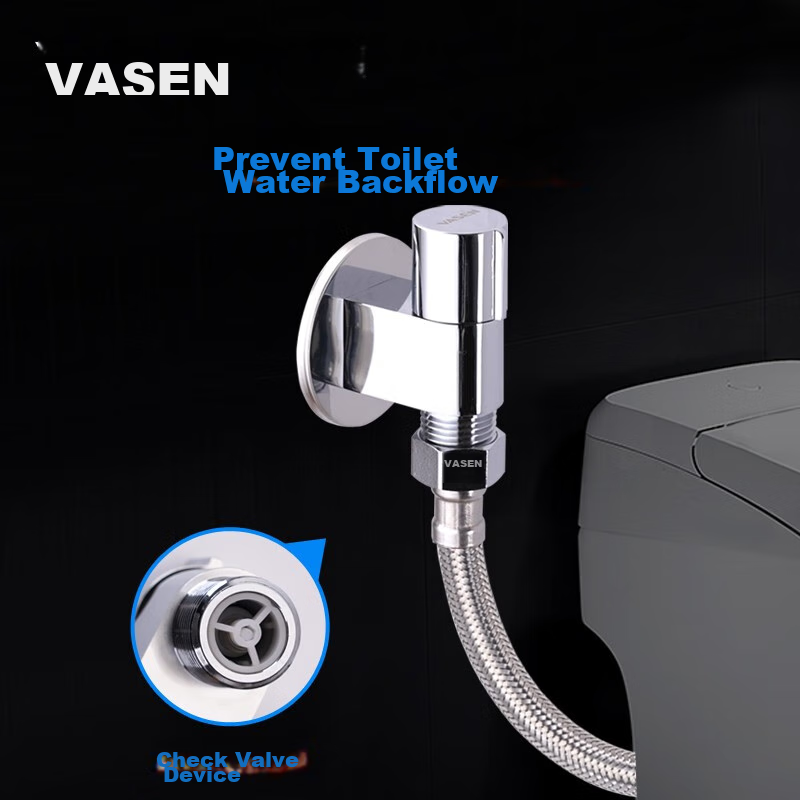

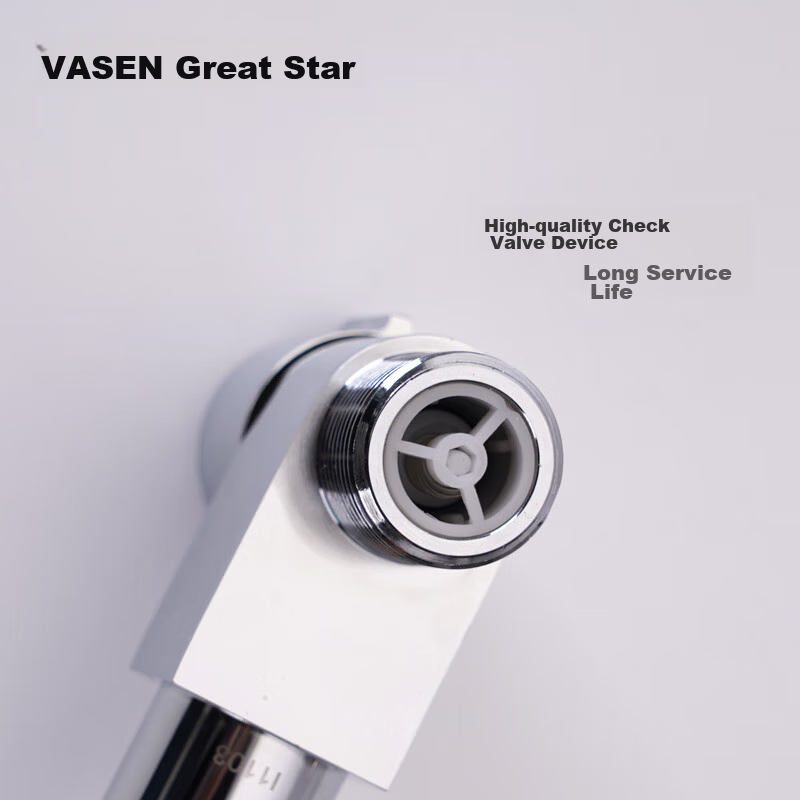

- Check valve design to prevent backflow of toilet water
**Installation Instructions:**
1. The installation location must have a floor drain and smooth drainage
2. Must be installed by a professional
3. Clean impurities in the pipeline before installation and cut off the water supply
4. Wrap the appropriate amount of raw material tape around the water inlet thread, then tighten the valve body clockwise
5. Do not use tools to tighten the product to avoid damage
6. Push the decorative cover against the wall and remove the protective film
7. After installation, check all connections for tightness and leaks before use
**Usage and Maintenance Instructions:**
1. Clockwise rotation closes the valve, counterclockwise opens it
2. Clean the product surface with water or mild detergent and a soft cotton cloth
3. Close the main water supply valve when not in use to prevent damage from abnormal pipe pressure
4. Take necessary measures to protect water equipment in temperatures ≤0°C
5. The company is not responsible for consequences resulting from incorrect installation or use as per the manual
Note: The above data is for reference only. Actual product specifications may vary.
