**Product Specifications:**

**Brand:** Thermalright

**Airflow Direction:** Front intake, rear exhaust

**Fan Rotation:** Counterclockwise for M12R fan blades, with the fan side facing the exhaust direction

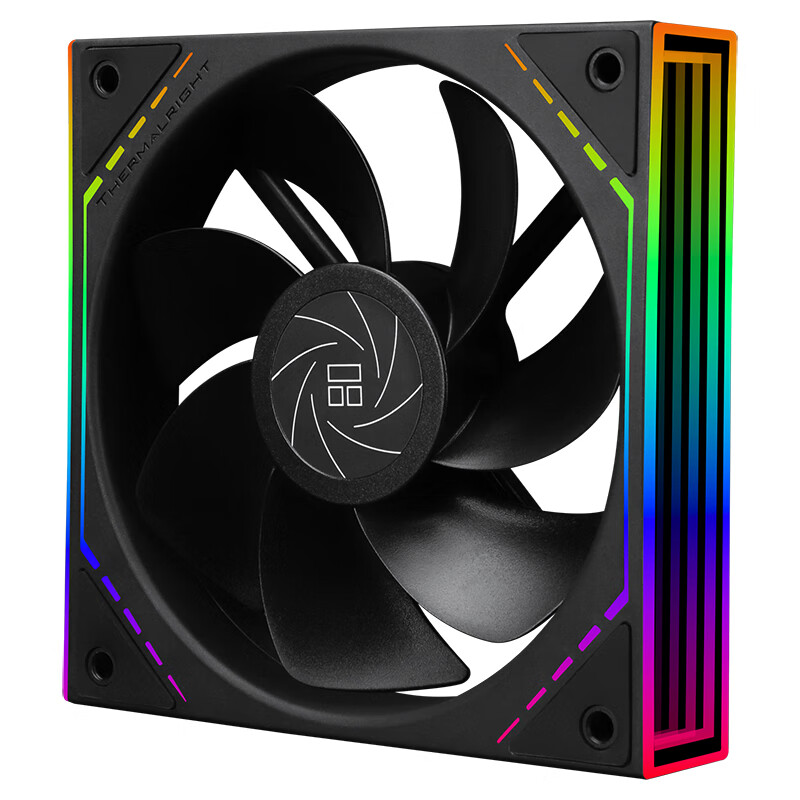

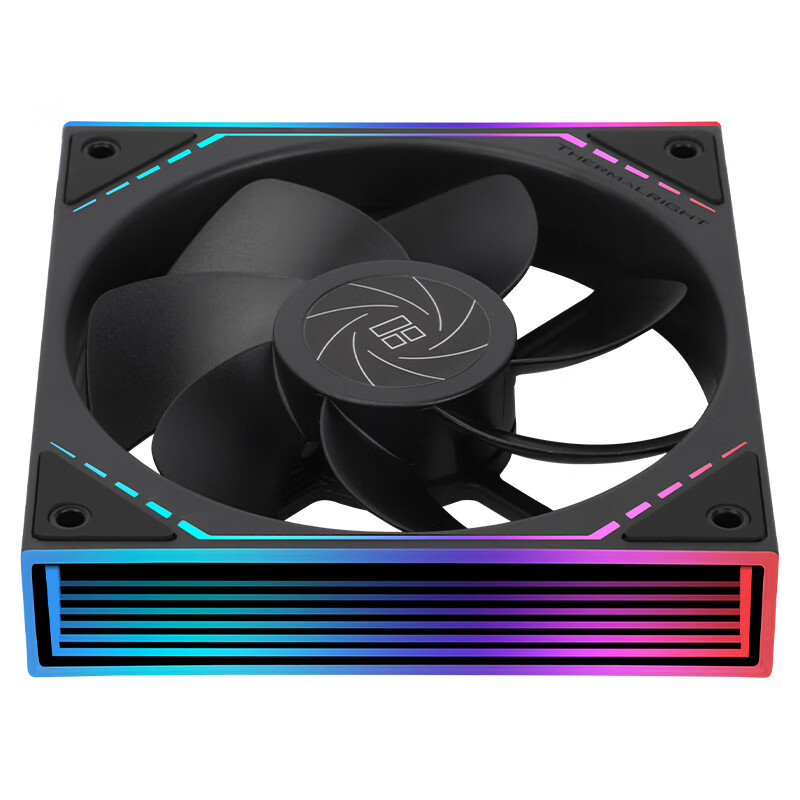

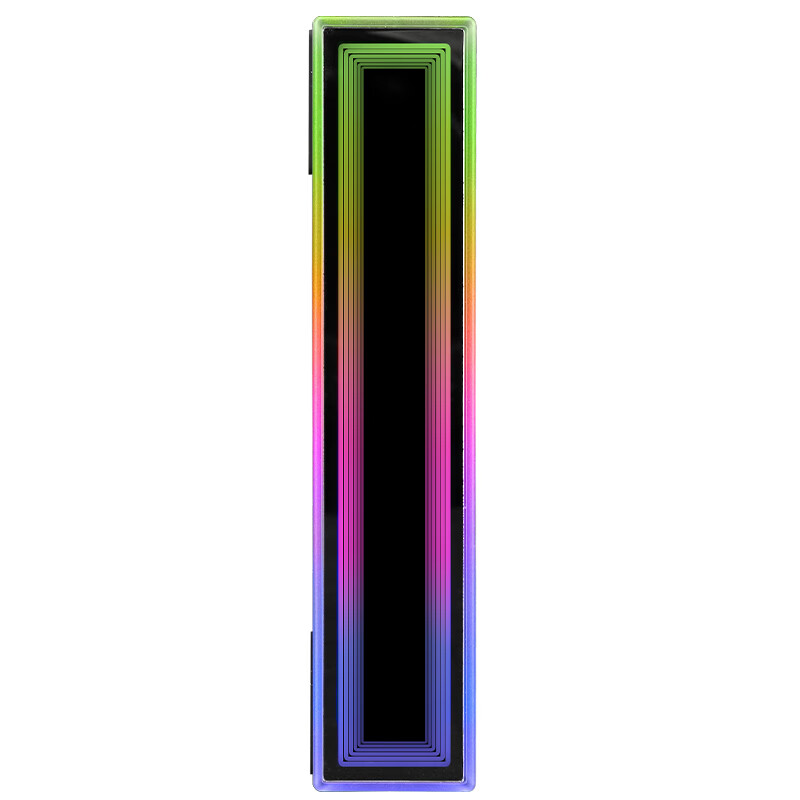

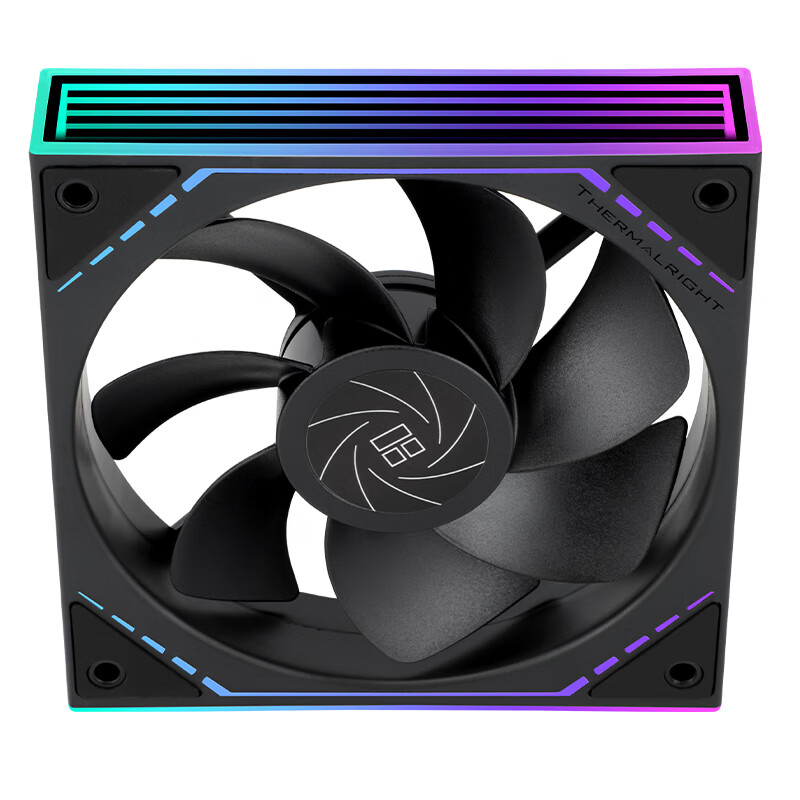

**Design Features:** Balanced combination of light and airflow, intricate design with infinite mirror frame structure, complemented by ARGB infinite mirror frame for multiple lighting effects

**Performance:** 42.6 CFM airflow with seven fan blades, meticulously tuned within 1500 RPM for optimal efficiency

**User Experience:** Soft silicone corner pads on both sides, providing excellent shock absorption

**Connectivity:** PWM fan interface, ARGB fan lighting interface, cable length of 50CM+5CM, supports fan PWM/ARGB daisy-chaining up to 55CM, with a limit of 5 same-spec fans in series (recommendation to use SATA power hub for exceeding limit)

**Technical Details:**

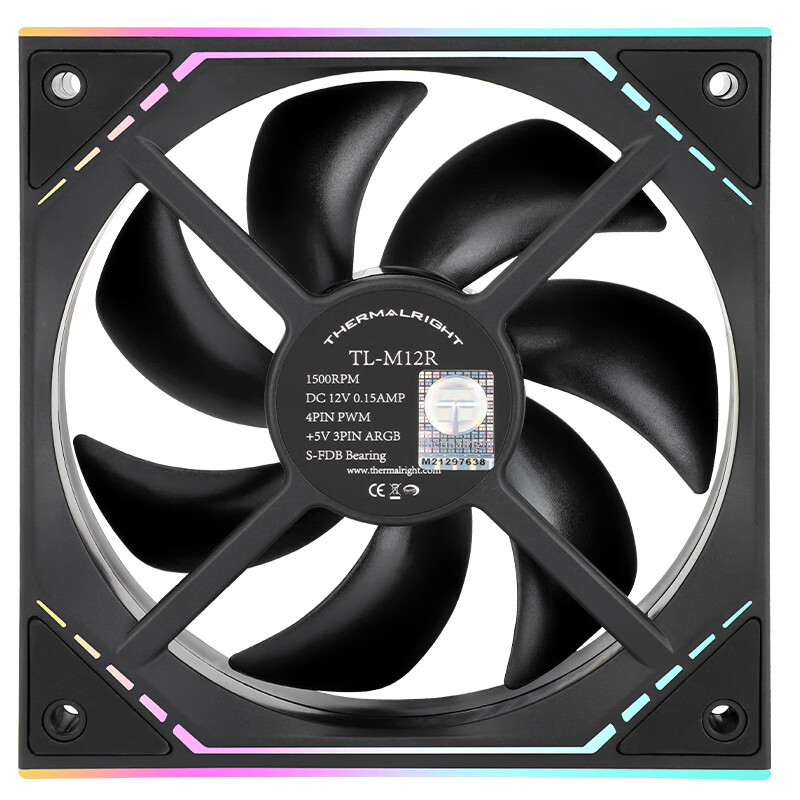

- Model: TL-M12R

- Fan Size: L124mm*W120mm*H25mm

- Fan Weight: 175g

- Fan Speed: 1500 RPM ±10%

- Noise Level: ≤23.2 dB(A)

- Airflow: 42.6 CFM

- Air Pressure: 1.31 mm/H2O

- Fan Interface: 4PIN PWM

- Operating Voltage: DC 12V

- Current: 0.15A

- Bearing Type: S-FDB Bearing

- Lighting Interface: +5V 3PIN ARGB

- Warranty: Three years

For more information, visit www.thermalright.com or contact support at ie@thermalright.com. Model number: M21297638. STABLY-FDB magnetic stabilizing bearing resolves fan blade vibration issues during suspension mode.
