**Product Specifications:**

**Brand:** Ruijie

**Plug and Play Switch Recommendation:** Desktop type

**Product Models:**

- RG-ES05: 5-port 100Mbps, Plastic Shell

- RG-ES105D: 5-port 100Mbps, Metal Shell

- RG-ES05G: 5-port 1000Mbps, Plastic Shell

- RG-ES105GD: 5-port 1000Mbps, Metal Shell

- RG-ES08: 8-port 100Mbps, Plastic Shell

- RG-ES108D: 8-port 100Mbps, Metal Shell

- RG-ES08G: 8-port 1000Mbps, Plastic Shell

- RG-ES108GD: 8-port 1000Mbps, Metal Shell

**Material:** Metal Shell

**Features:**

- True 8-core design

- Strong adaptability for multiple scenarios

- DC 5V power supply

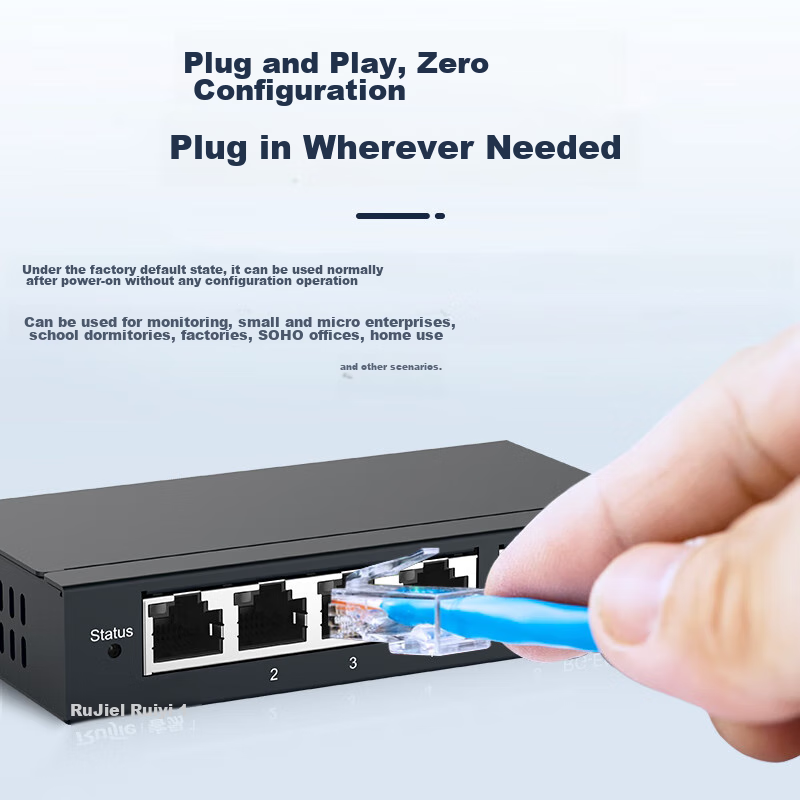

- Easy plug and play setup

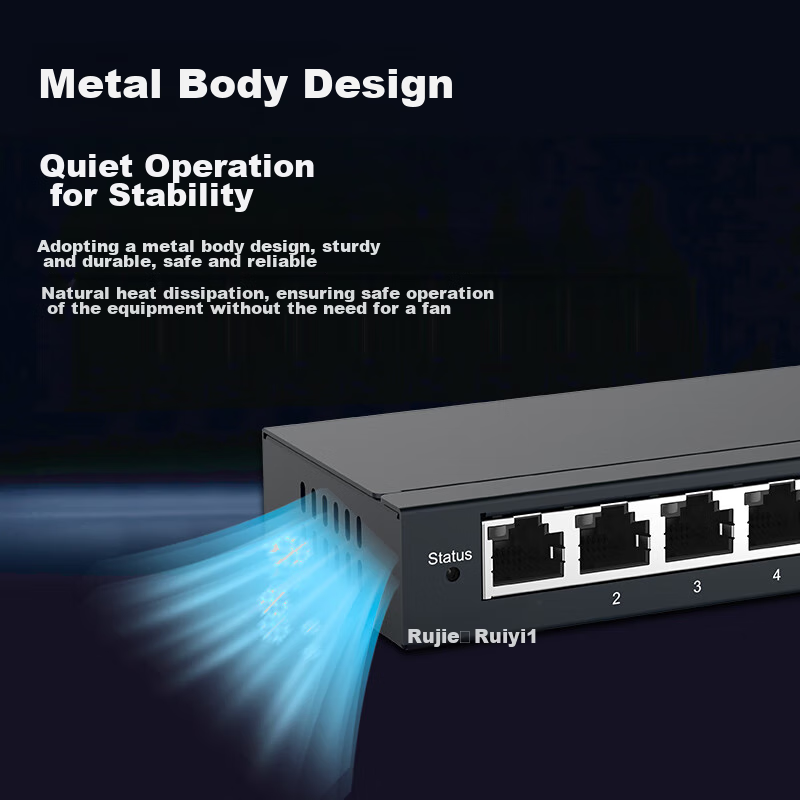

- Excellent heat dissipation

- High-quality for enterprise use

- Green and energy-saving

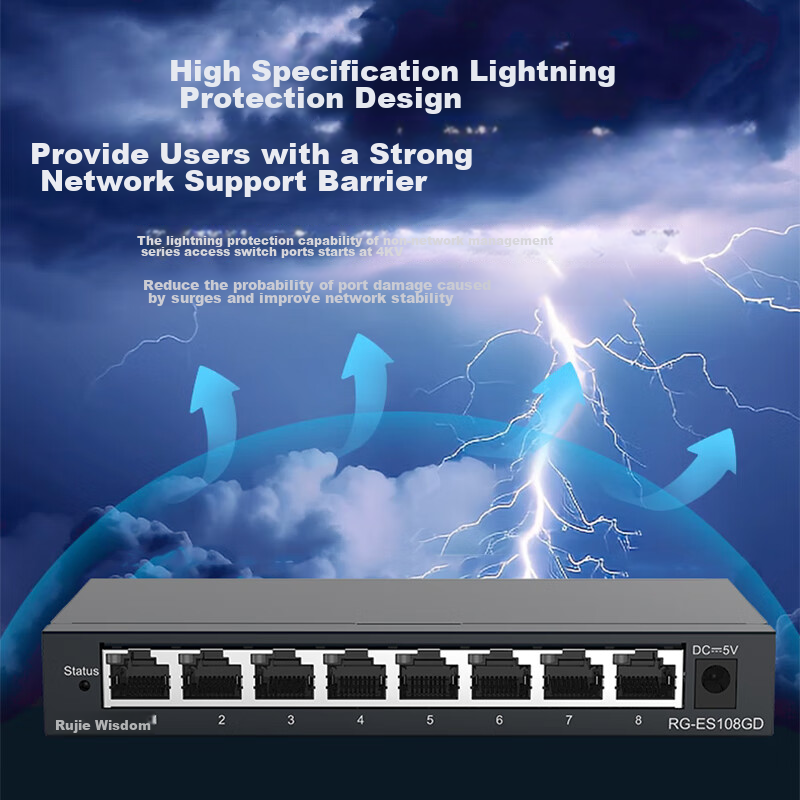

**Lightning Protection:** 4KV lightning protection for strong network support

**Compatibility:** Suitable for various scenarios including monitoring, small businesses, school dormitories, SOHO offices, and home use

**Port Expansion:** Supports easy expansion of network ports for connecting more terminals

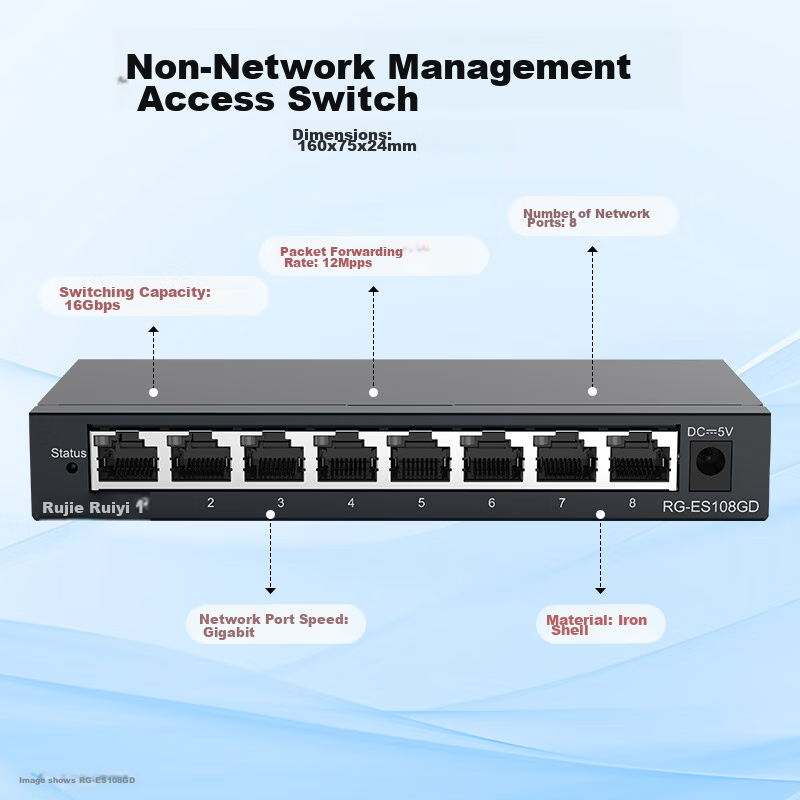

**Compact Design:** Small and easy to use, dimensions: 160mm x 75mm x 24mm

**Additional Specifications:**

- Models: ES105D, ES108D, ES105GD, ES108GD

- Port Types: 5x 10/100Mbps RJ45, 8x 10/100Mbps RJ45, 5x 10/100/1000Mbps RJ45, 8x 10/100/1000Mbps RJ45

- Switching Capacity: 1Gbps, 1.6Gbps, 10Gbps, 16Gbps

- Forwarding Rate: 744Kpps, 1.19Mpps, 7.44Mpps, 11.9Mpps

- MAC Address Table: 2K entries

- Power Supply: External 5VDC 1.0A

- Lightning Protection Level: 4KV

- Power Consumption: ≤5W

- Operating Temperature: 0°C to 50°C

- Storage Temperature: -40°C to 70°C

- Operating Humidity: 10% to 90% non-condensing

- Storage Humidity: 5% to 90% non-condensing

**Note:** Specifications may vary based on the specific model.
