Specifications:
Brand: Ruijie
Model: RG-YS08
Basic Specifications:
- Fixed Interfaces: 8 x 10/100Mbps adaptive Ethernet interfaces
- Switching Capacity: 1.6Gbps
- Packet Forwarding Rate: 1.2Mpps
- MAC Table Entries: 2K
- Layer Type: Unmanaged switch
- Static MAC Addresses: Not supported
- MAC Address Filtering: Not supported

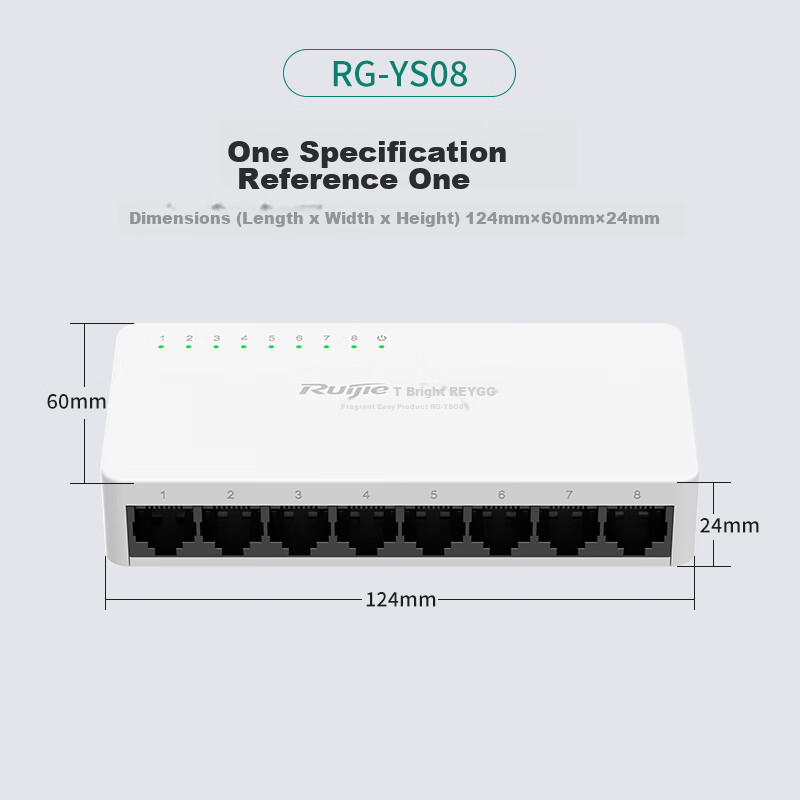

- Dimensions (W x D x H): 124mm x 60mm x 24mm
- System Indicator Lights: Supported
- Power Switch: Not supported
- Reset Button: Not supported
- Weight: 82g (excluding packaging)
- Installation: Desktop mount, wall mount
- Fixed Management Port: None
- Cable Hot Swap: Supported
Technical Parameters:
- Power Supply: Power adapter
- Hot Swap Power: Not supported
- Maximum Power Consumption: ≤2.1W
- Adapter AC Input:
- Rated Voltage Range: 200V-240V~
- Maximum Voltage Range: 180V-264V~
- Frequency: 50Hz/60Hz
- Power Supply Mode:
- Rated Current: 0.2A
- Adapter DC Output:
- Rated Voltage: 5V-
- Rated Current: 1A
- Energy Efficiency (EEE): Not supported
- Operating Temperature: 0°C~40°C
- Storage Temperature: -40°C~70°C
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 10%~90% non-condensing

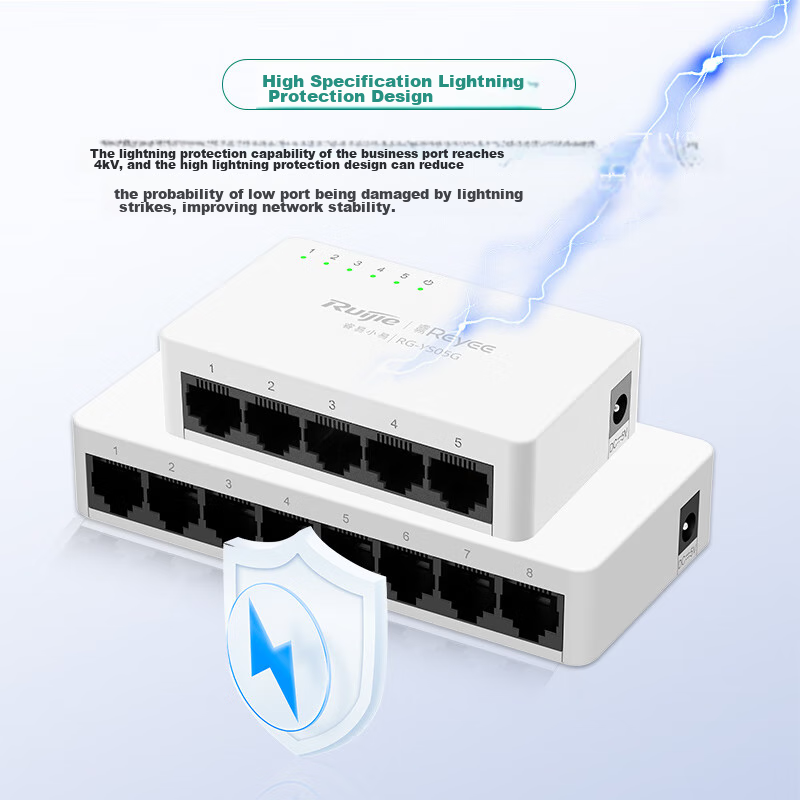

- Business Port Lightning Protection:
- Common Mode ±4kV
- Differential Mode +2kV
- Power Supply Lightning Protection:
- Common Mode ±2kV

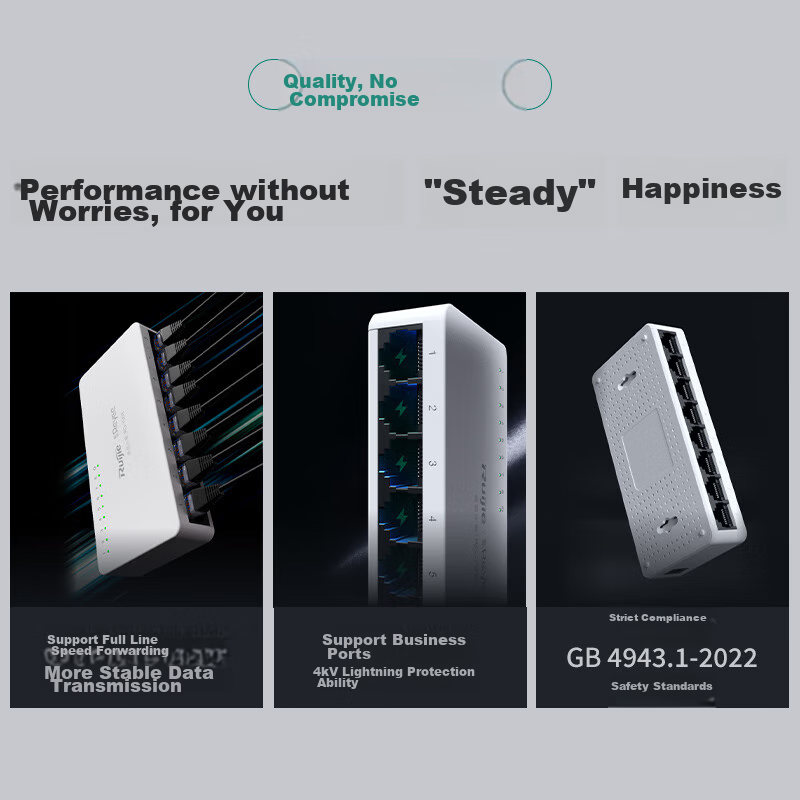

- Certification: Network Access Certificate, Safety Regulations GB4943.1-2022
