Specifications:

Brand: Ruijie

Quality: Uncompromising quality, worry-free performance, providing stable happiness

Compliance: Strictly complies with GB4943.1-2022 standards

Data Transmission: Ensures stable data transmission with a lightning protection capability of 4kV

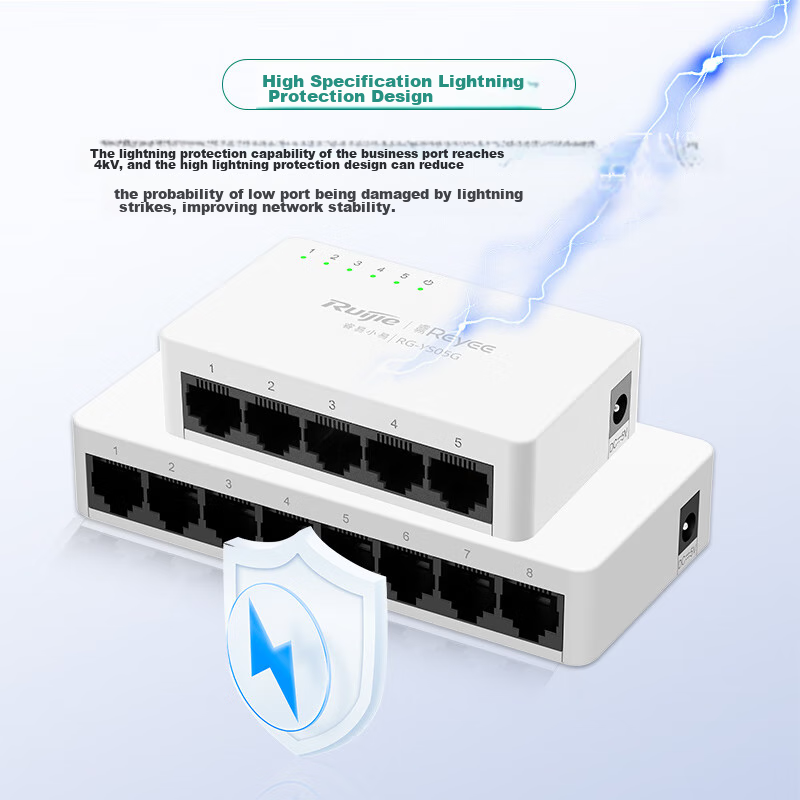

Lightning Protection: High-spec lightning protection design with a lightning protection capability of 4kV for business ports

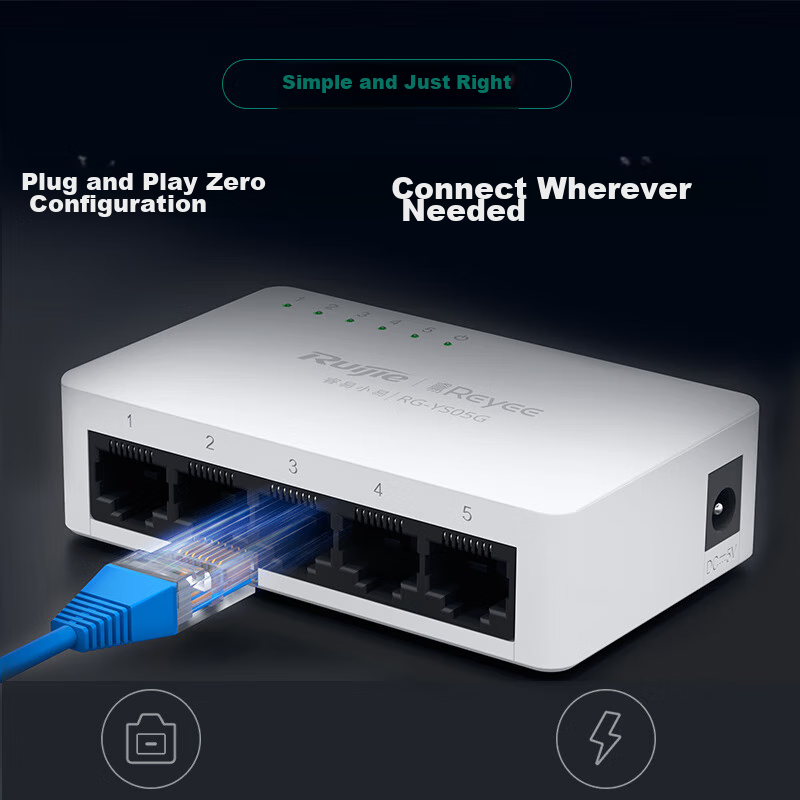

Plug and Play: Supports plug-and-play with zero configuration required, adaptive Ethernet interfaces

Port Expansion: Easily expands network ports for various scenarios such as home, office, and surveillance

Compact Design: Lightweight and compact design, suitable for various environments such as surveillance, small businesses, school dormitories, home use

Model: IRG-YS05G

Basic Specifications:

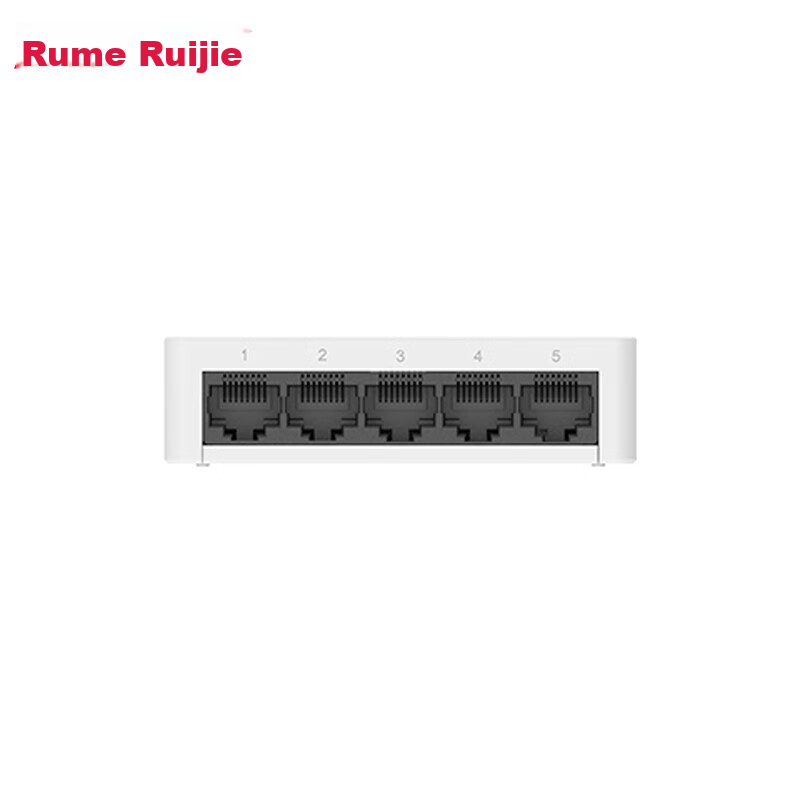

- Fixed Interfaces: 5 x 10/100/1000Mbps adaptive Ethernet interfaces

- Switching Capacity: 10Gbps

- Packet Forwarding Rate: 7.5Mpps

- MAC Table Entries: 2K

- Layer Type: Unmanaged switch

- Static MAC Address: Not supported

- MAC Address Filtering: Not supported

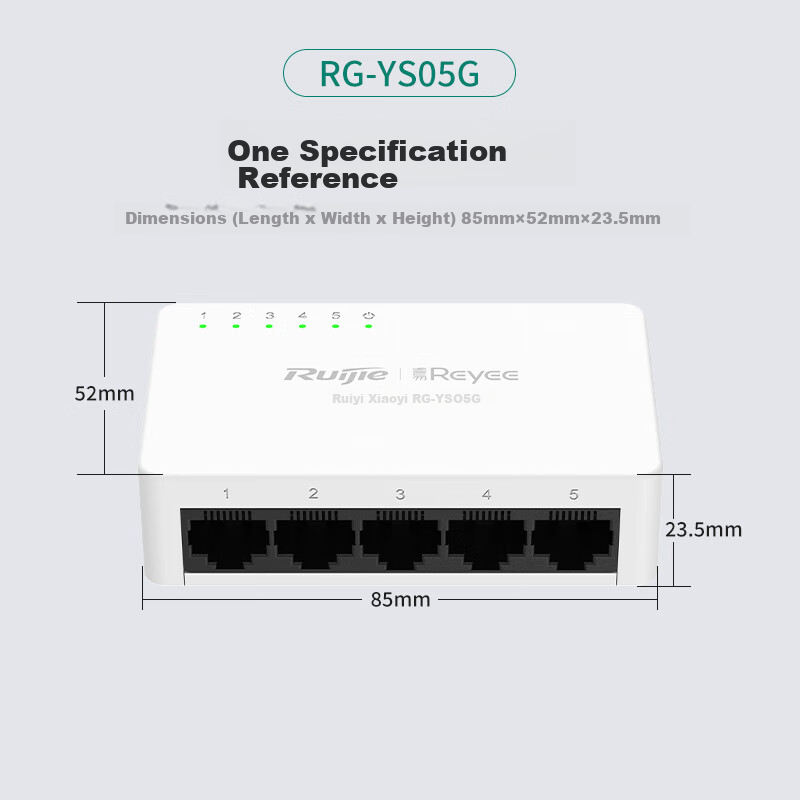

- Dimensions (W x D x H): 85mm x 52mm x 23.5mm

- System Indicator Lights: Supported

- Power Switch: Not supported

- Reset Button: Not supported

- Weight: 59g (excluding packaging)

- Installation: Desktop or wall mount

- Management Port: None

- Cable Hot Swap: Supported

Power:

- Power Supply: Adapter powered, hot-swappable

- Maximum Power Consumption: ≤2.6W

- Adapter AC Input:

- Rated Voltage Range: 200V-240V~

- Maximum Voltage Range: 180V-264V~

- Frequency: 50Hz/60Hz

- Power Supply:

- Rated Current: 0.2A

- Adapter DC Output:

- Rated Voltage: 5V

- Rated Current: 1A

- Energy Efficiency (EEE): Not supported

Operating Conditions:

- Operating Temperature: 0°C~40°C

- Storage Temperature: -40°C~70°C

- Operating Humidity: 10%~90% non-condensing

- Storage Humidity: 10%~90% non-condensing

Lightning Protection:

- Business Port: Common mode ±4kV, differential mode +2kV

- Power Supply: Common mode ±2kV

Certification: Network access certificate, safety regulations GB4943.1-2022
