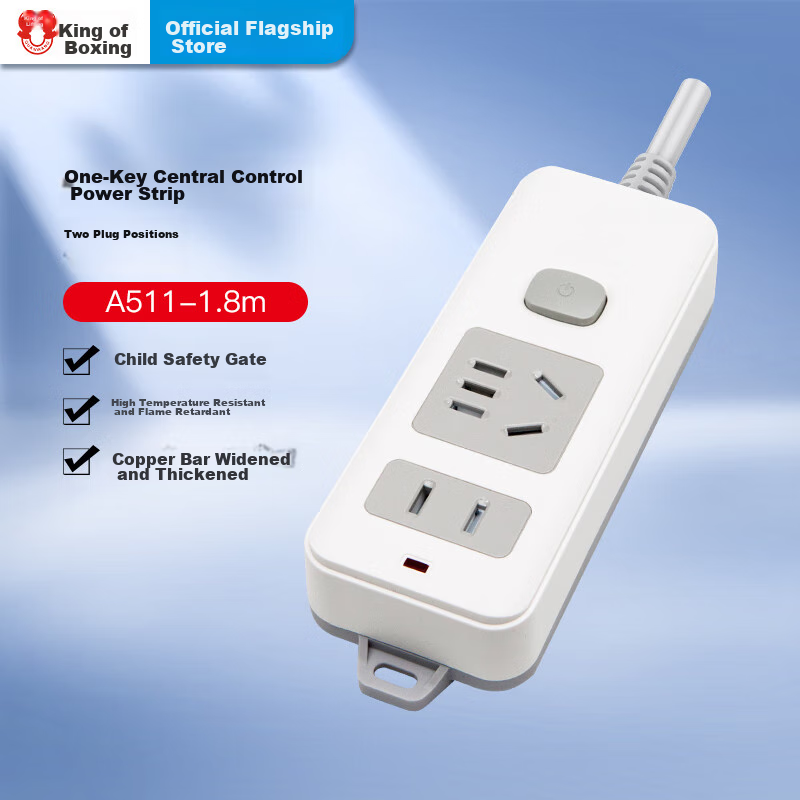

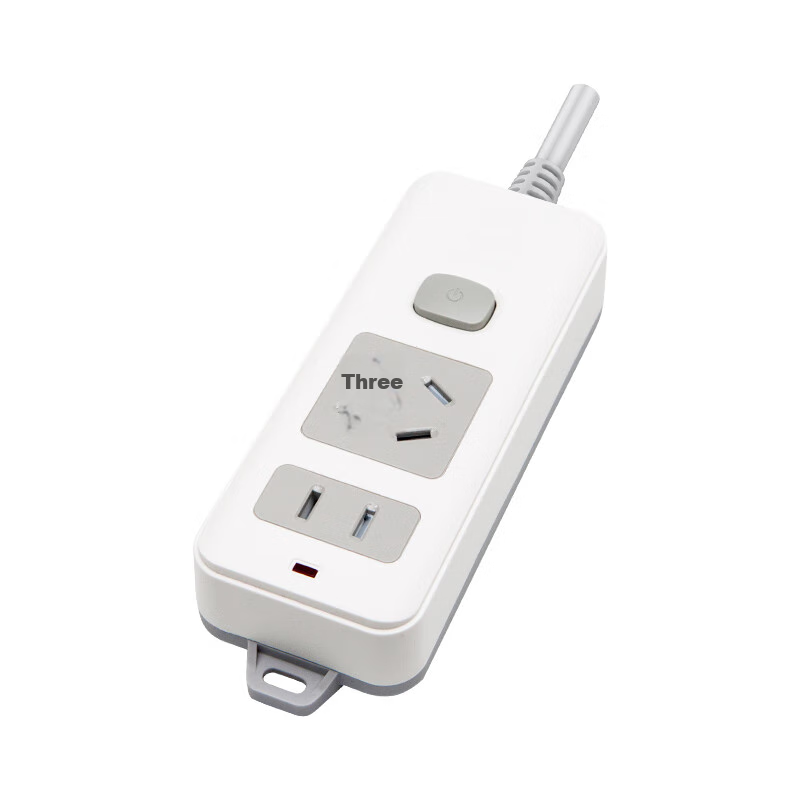

**Product Specifications:**

**Brand:** QUANWANG

**Model:** A511

**Size:** 150x54x30(mm)

**Color:** White Gray

**Socket Number:** One five-hole + one two-hole

**Rated Voltage:** 250V~50Hz

**Rated Power:** MAX 2500W

**Rated Current:** MAX 10A

**Specifications:**

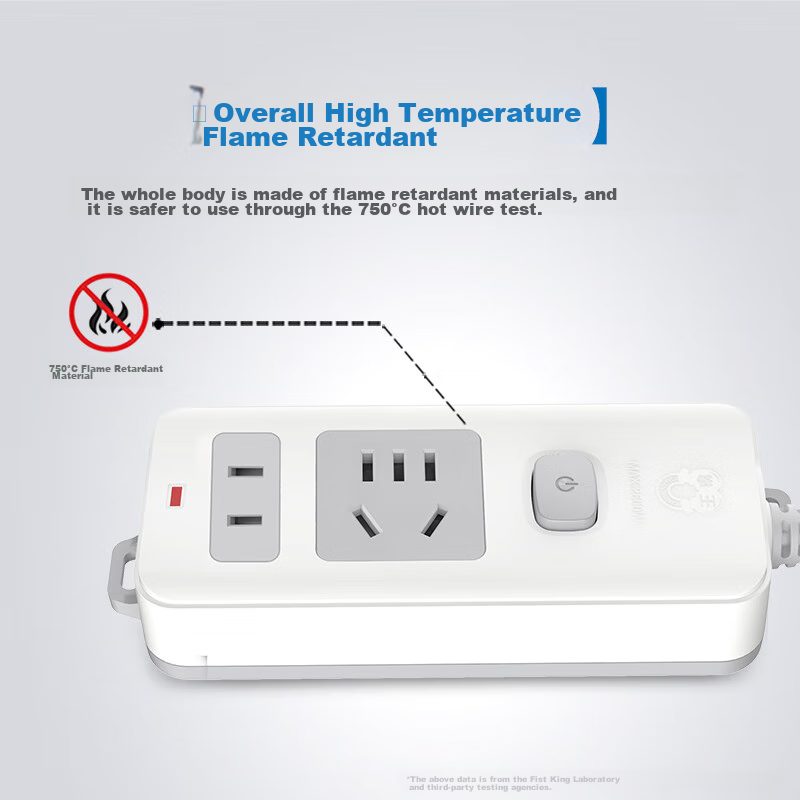

1. **High Temperature Flame Retardant:**

- Made of flame retardant material, withstands 750℃ heat test for safety.

- Material tested for flame resistance up to 750℃.

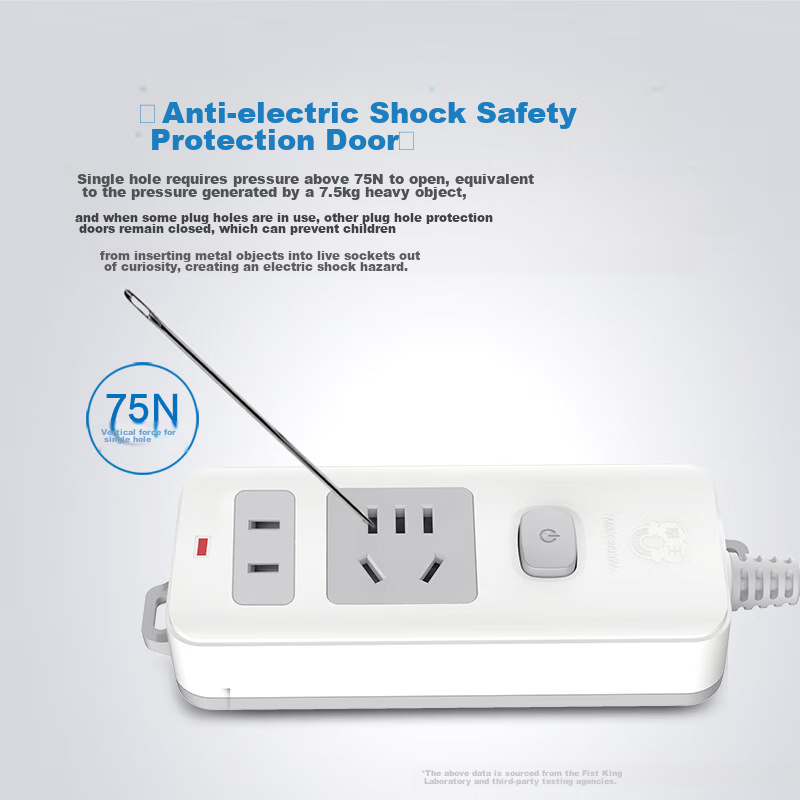

2. **Electric Shock Protection:**

- Individual sockets require pressure of 75N or more to open, equivalent to the pressure exerted by a 7.5kg weight.

- Child-proof design to prevent accidental insertion of metal objects into live sockets.

3. **Long Insertion Life:**

- High-quality copper contacts with precise engagement design.

- Can withstand 5000 normal insertions without loosening.

4. **Enhanced Copper Design:**

- Copper strip widened and thickened for better conductivity and less heat generation.

- Copper core cross-sectional area increased by 33% for improved conductivity and less heat generation.

5. **Product Details:**

- Integrated plug design with new national standard five-hole layout.

- 42mm socket spacing to accommodate multiple devices.

- Ergonomic design with durable construction and convenient features.

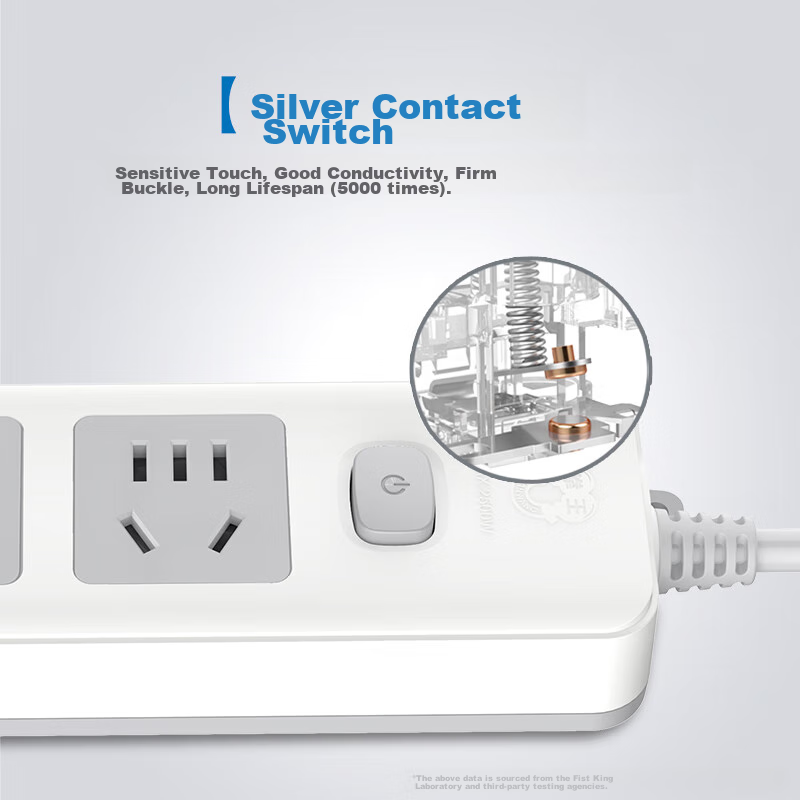

6. **Switch and Contact Design:**

- Sensitive silver contact switch with durable locking mechanism.

- Switch connection rod made of POM for longevity.

7. **Cable Length Measurement:**

- Measurement example: 1.8 meters total length.

- Segments: 0m, 1.0m, 1.8m.

*All data sourced from QUANWANG laboratory and third-party testing agencies.*
