Product Specifications:

Brand: ONDA

Model: H610SD4-ITX-W

Form Factor: Mini-ITX

Chipset: Intel

Year Established: 1989

Features: Compact size with powerful performance

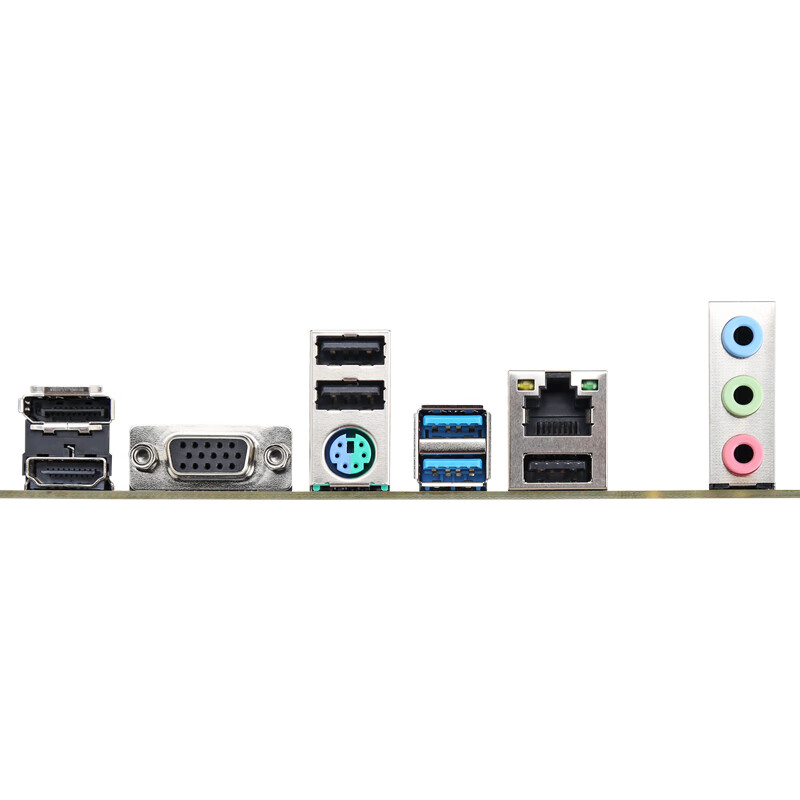

Interfaces:

1. DisplayPort (DP) x1

2. HDMI x1

3. VGA x1

4. USB 3.2 Gen1 x3

5. Keyboard and mouse interface x1

6. USB 3.2 Gen1 x2

7. Ethernet port x1

8. M.2 Wi-Fi interface x1

9. Audio output x1

10. PCI-E 16X armored slot x1

11. Full-speed M.2 interface x1

12. SATA interface x4

13. Front USB 3.2 Gen1 interface x1

14. 24-pin ATX power connector x1

15. DDR4 dual-channel armored slot x2

16. Solid capacitors x8

17. 8-phase enhanced digital power supply

18. 8-pin CPU power connector x1

19. Compatibility: Supports Intel 14th/13th/12th Gen Core CPUs

20. 2x 3-pin 5V ARGB headers

Gaming Features:

- Supports high-frequency DDR4 dual-channel memory up to 3200MHz (backward compatible with 2133/2400/2666/2933MHz)

- Enhanced system processing and program responsiveness

Cooling System:

- Equipped with full-range armored protection

- Anodized metal heat sink for effective cooling and interference resistance

- Alloy reinforcement for memory and GPU slots for increased stability and strength
