**Product Specifications:**

**Brand:** LR-LINK

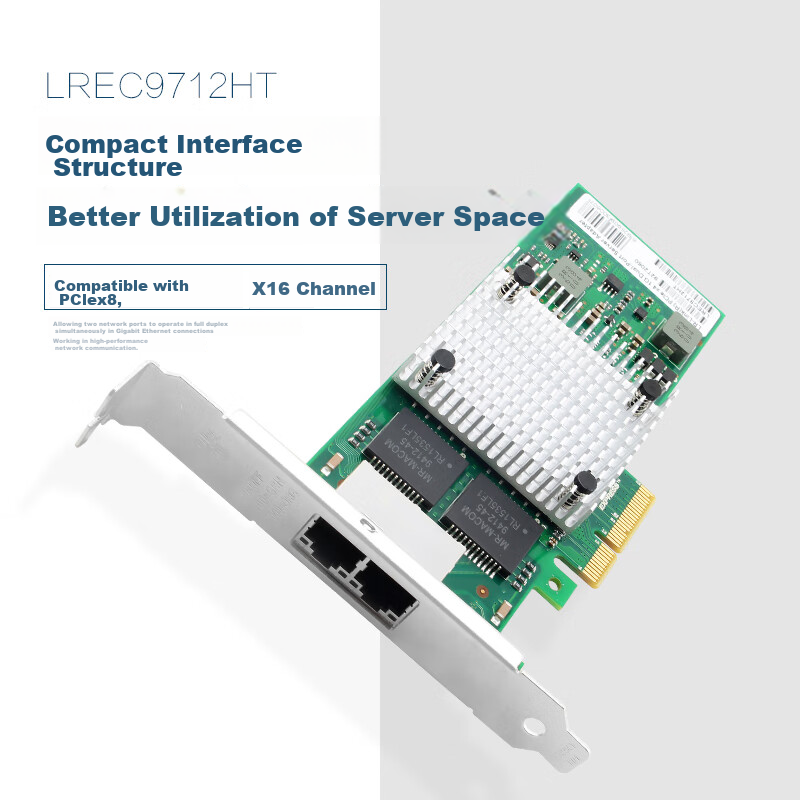

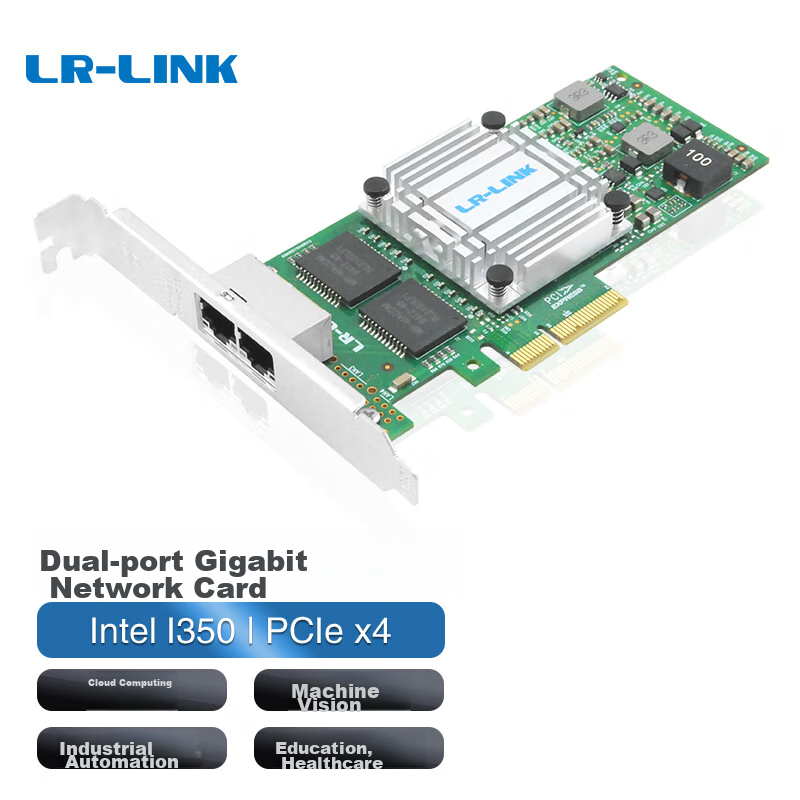

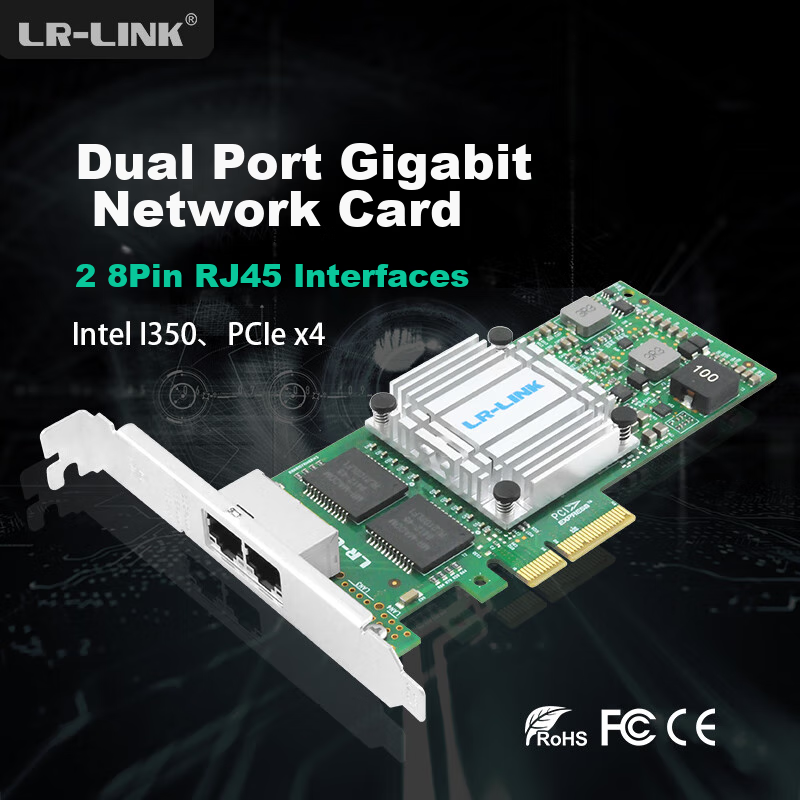

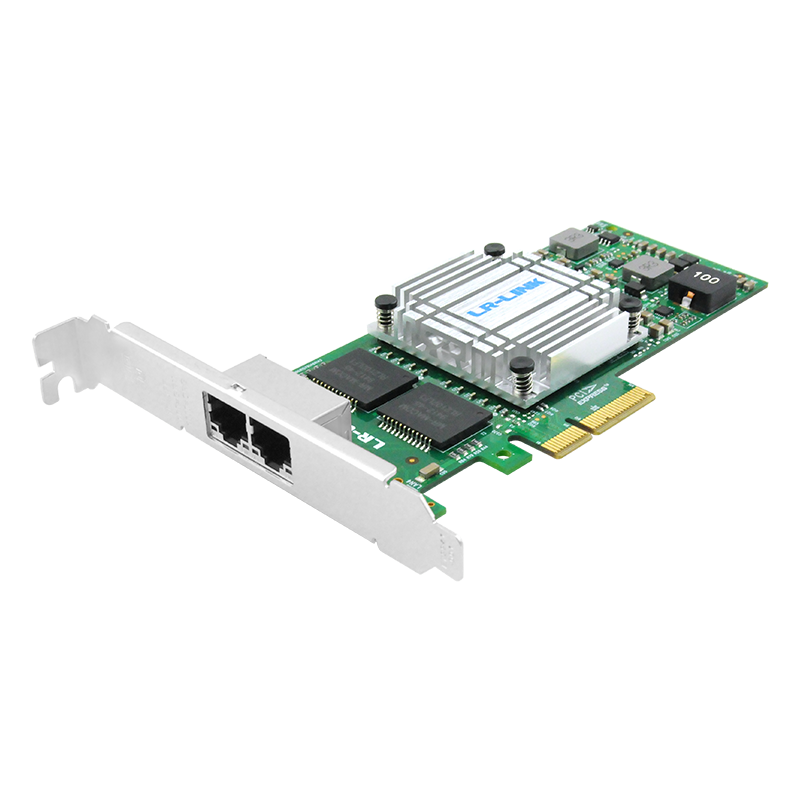

**Product Name:** Machine Vision Industrial Communication PCI-E Gigabit Dual Port Network Card

**Main Controller:** Intel 1350

**Supported Features:** Jumbo Frames, DPDK, PXE, ESXi, ROS, Spider Aggregation

**Performance:** Pursuit of Speed, 1Gbps Rate, 15% CPU Performance Improvement

**Interface:** 2 x 1G RJ45 Ports

**Compatibility:** PCI-EX4, Compatible with Multiple Systems

**Lifetime Technical Support**

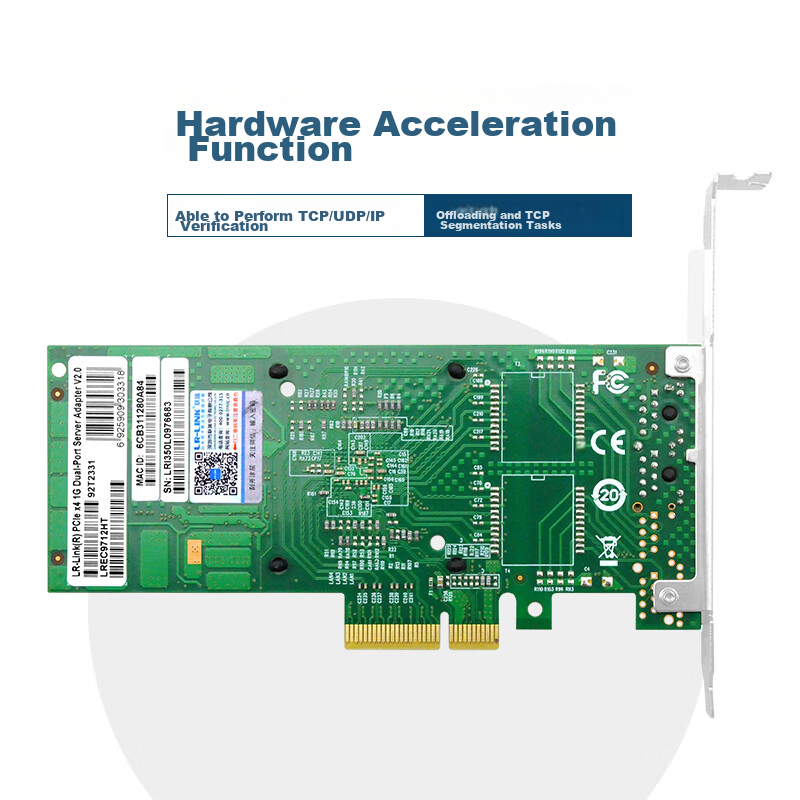

**Hardware Acceleration:** TCP/UDP/IP Checksum Offload, TCP Segmentation Offload

**Applications:** Virtualization, Machine Vision, Servers, Network Segmentation

**Port Configuration:** 2 x RJ45 Ports for Gigabit Rate

**LED Indicators:** 1000Mbps - Orange Light On + Green Light Blinking, 100Mbps - Green Light On + Green Light Blinking, 10Mbps - Green Light Blinking

**Operating Temperature:** -0°C to 55°C (32°F to 131°F)

**Storage Temperature:** -40°C to 70°C (-40°F to 158°F)

**Certifications:** FCC, CE, RoHS

**Dimensions:** 146 x 120 x 21 mm

**Package Dimensions:** 230 x 150 x 30 mm

**Slot Compatibility:** PCI, PCI-E X1, PCI-E X4, PCI-EX16

**Operating System Support:** Windows, Linux, CentOS, Ubuntu, Vmware, FreeBSD

**Driver Installation:** Provided via CD or Contact Customer Service

**Additional Features:** Gold-Plated Shielded Interface, Enhanced Heat Dissipation, Thick Gold Finger for Stable Data Transmission

**Power Consumption:** 4.0W (Max)

**Port Type:** 2 x 8-Pin RJ45

**Bus Interface:** PCIE V2.1 (2.5GT/S & 5.0GT/S) X4, Compatible with x8, x16

**Port Speed:** 10/100/1000Mbps

**Power Supply:** PCIE

**Support:** PXE, DPDK, Jumbo Frames

**Not Support:** FCoE

**Note:** Please refer to the installation guide for proper installation of the network card based on your motherboard's slot compatibility.
