**Specifications:**

**Brand:** HIKROBOT, HIKVISION, HIKVISION's products are under the brand HIKROBOT

**Description:** HIKROBOT, a global provider of machine vision and mobile robot products and solutions, serves users in industrial and logistics fields by continuously innovating technology to drive intelligence and lead the smart manufacturing process.

**Barcode Scanner Features:**

- Detachable cable design for easy storage and replacement

- High-speed rebound button with ergonomic design for over 5 million key presses

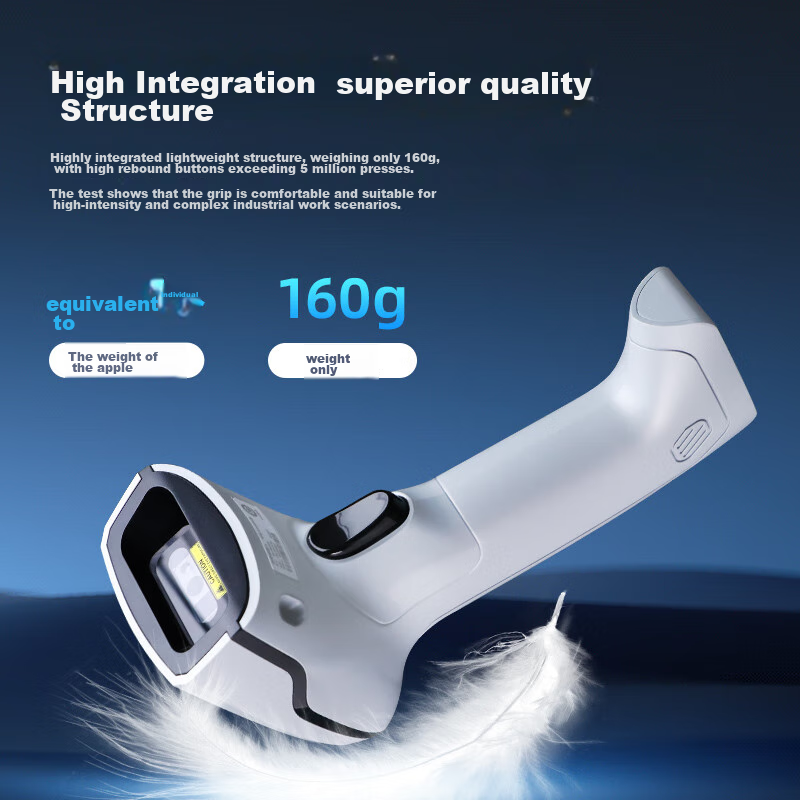

- High-integrated body structure for shock resistance and durability in complex industrial environments

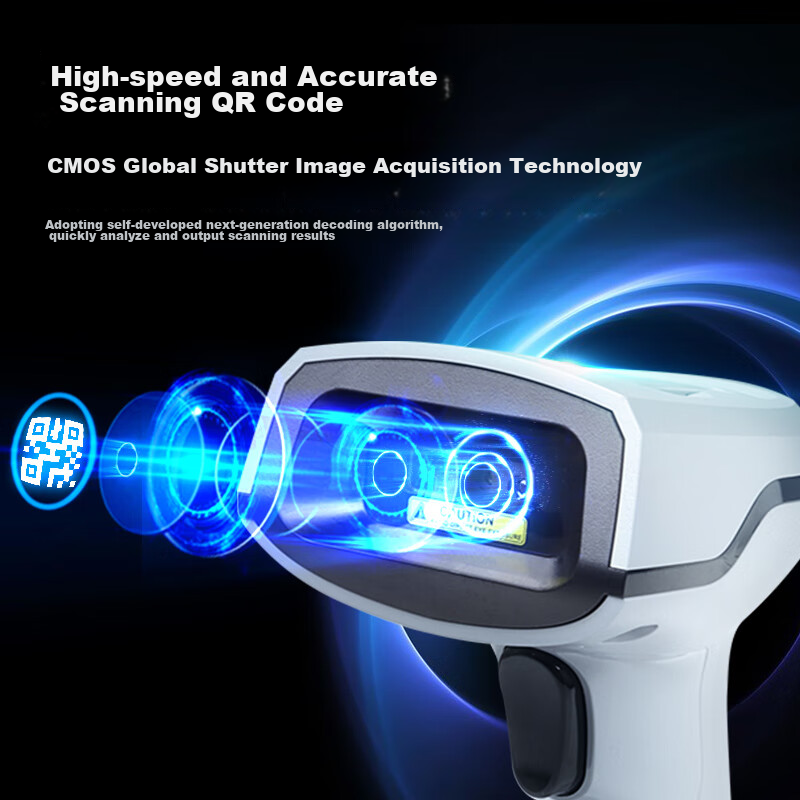

- High-precision decoding with NPU+CPU dual processors for efficient recognition of difficult codes

**Models Available:**

- Wired and wireless options for light industrial use

- Upgraded high-precision version with various features for different industrial scenarios

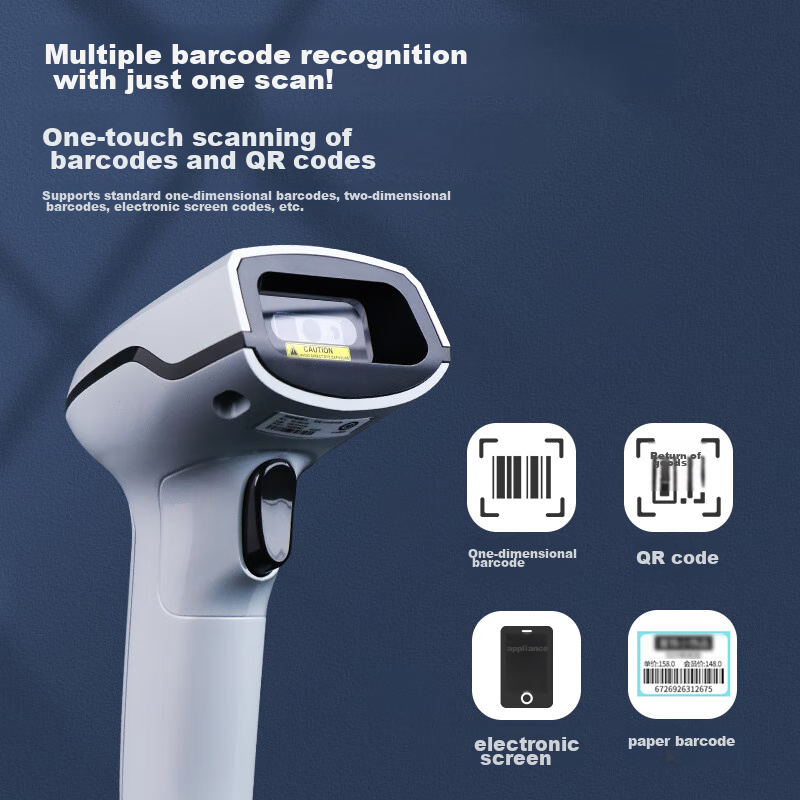

**Supported Barcodes:**

- One-dimensional codes: Code39, Code93, Code128, etc.

- Two-dimensional codes: QRCode, DataMatrix, MicroQR, etc.

**Additional Features:**

- Plug and play installation, compatible with various systems

- Dual reading modes for manual and automatic scanning

- LED indicator and buzzer for scan status alerts

- Optional wired/wireless versions with 2.4G wireless transmission support

- Long-lasting 2700mAh rechargeable lithium battery for extended use

**Applications:** Suitable for industries such as retail, logistics, healthcare, and light manufacturing

**Certifications:** CE, RoHS, KC

**Dimensions:** 66.5mm×94mm×169.5mm

**Weight:** Approximately 160g

**IP Protection Rating:** IP42

**Operating Temperature:** -20~55℃

**Storage Temperature:** -30~70℃

**Humidity:** 5%～95%RH non-condensing

**Drop Height:** 1.5m for 50 times

**Communication Protocol:** SmartSDK, USB (HID/CDC)

**Electrical Characteristics:** USB 2.0 interface, 5VDC power supply, maximum power consumption of 2.5W@5VDC

**Optical Characteristics:** Focal length of 3.1mm, M5.0-Mount lens interface, 0~100000lux ambient light, white LED light source, orange LED aiming light

**Prompt Methods:** LED indicator light, buzzer

**Testing Conditions:** Ambient temperature=25℃; Ambient illuminance=250lux incandescent light; Use our designated test codes

**Additional Information:**

HIKROBOT, a leading brand under HIKVISION, focuses on independent research and development, with a wide range of patented technologies and certifications to ensure quality. It has been recognized with multiple design innovation awards and serves various industries globally.
