Specifications:

Brand: Qijiaoban

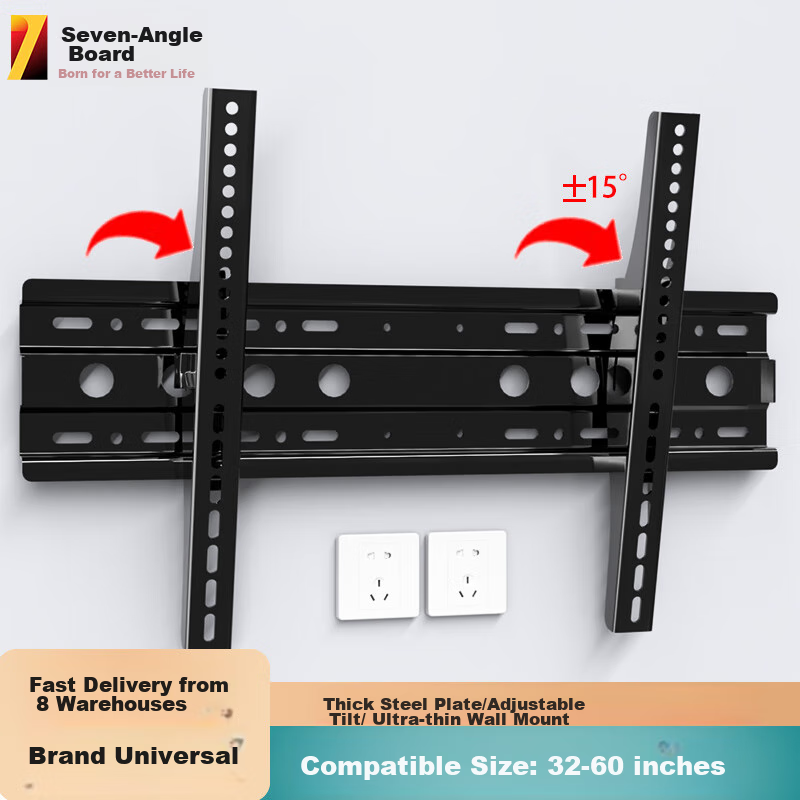

Universal TV wall mount for 32-60 inch TVs

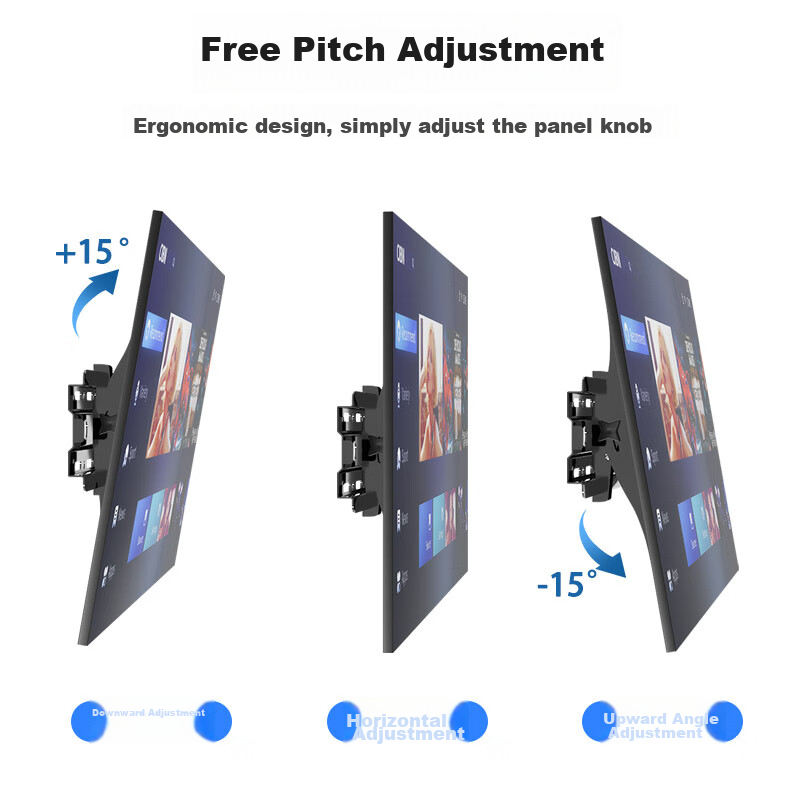

Tilt adjustment for optimal viewing angle: ±15°

Six highlights:

1. Sturdy and secure design

2. One-piece stamping

3. Thickened steel plate

4. Multiple hole position adjustments for enhanced weight-bearing capacity

5. Ultra-thin design for a sleek look

6. Compatibility with various TV brands

Safety features:

- Zhejiang Lvlu Testing Technology Service Co., Ltd. certification

- Approval number: ZJLL220405493

Smooth and adjustable:

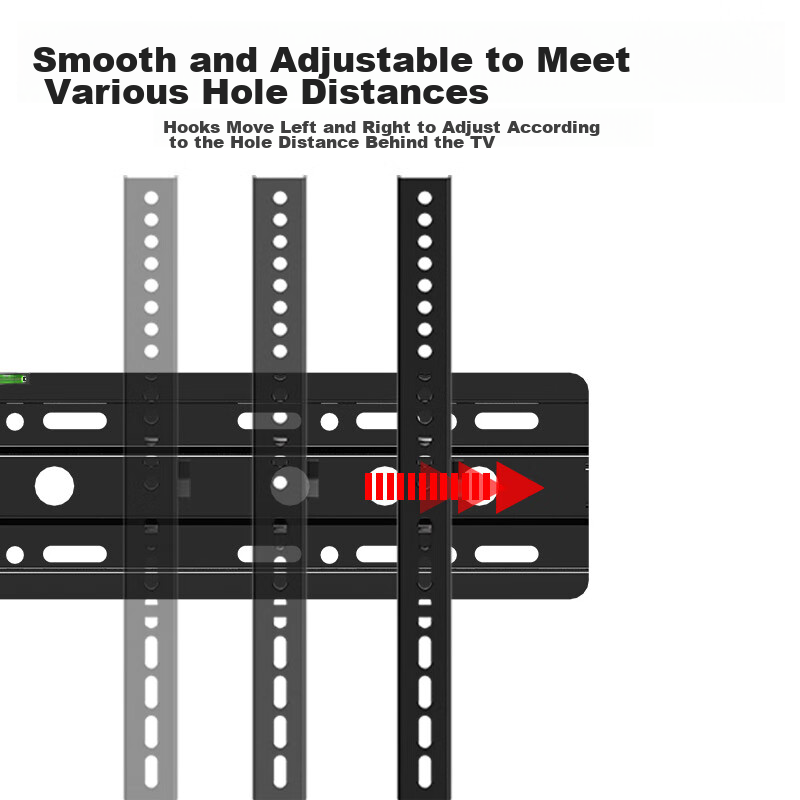

- Left and right hook movement for different hole distances

- Tilt adjustment for ergonomic design

- Wall-hugging design with 55mm distance for improved heat dissipation

Enhanced durability:

- Thickened panel for increased safety

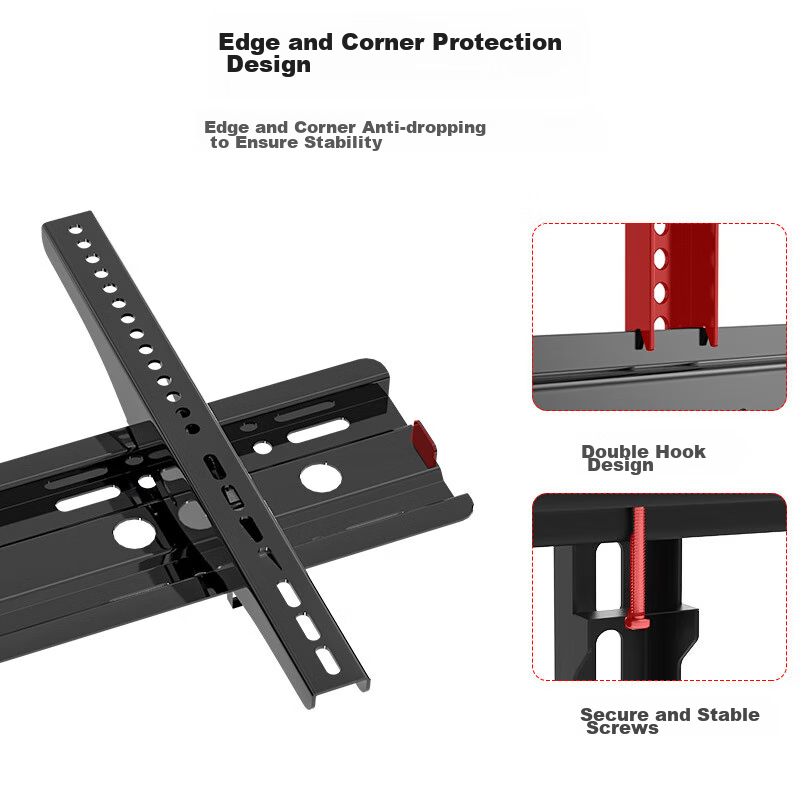

- Triple protection design with thickened integral molding, side panels, and secure screws

Compatibility:

- Suitable for 98% of TV models on the market, including brands like Xiaomi, JAV, TCL, Konka, Huawei, Changhong, Mi, V, Haier, Coorv, Philips, Honor, Toshiba, SAST, Skyworth, and more

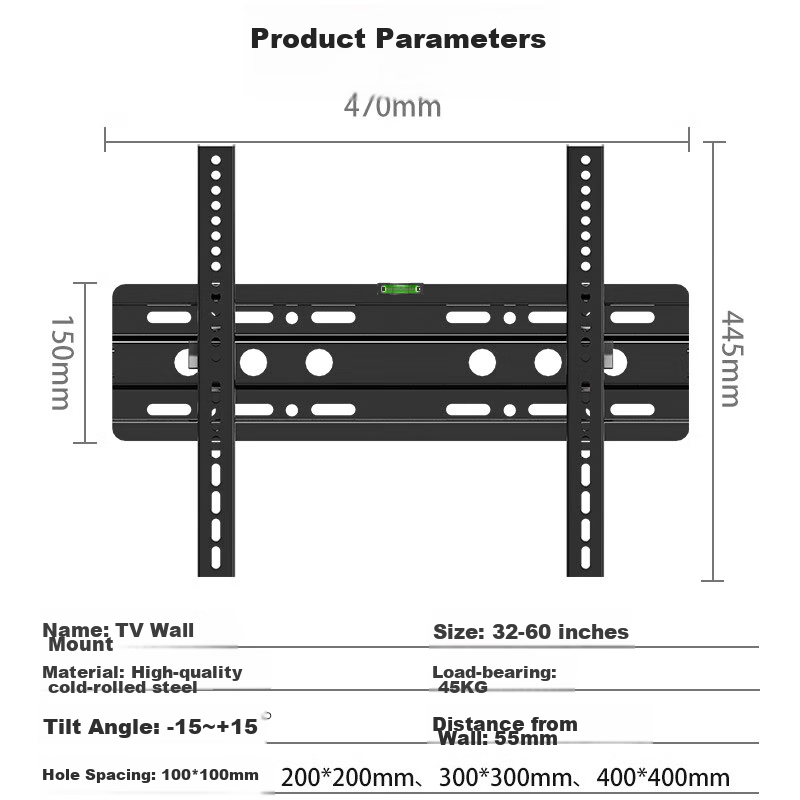

Product details:

- Dimensions: 470mm x 150mm x 445mm

- Material: High-quality cold-rolled steel

- Weight capacity: 45KG

- Tilt angle: -15° to +15°

- Distance from wall: 55mm

- Hole spacing: 100x100mm, 200x200mm, 300x300mm, 400x400mm

Application: Suitable for living rooms and bedrooms

Installation: Easy 4-step process

1. Drill holes

2. Fix the panel

3. Secure the hooks

4. Mount on the wall

Installation requirements:

- Weight-bearing wall surface (e.g., concrete, solid brick)

- Recommended height for TV screen center from the ground: 1.1m-1.2m

- Drill hole recommendation: 10mm drill bit, 8mm expansion tube, 6mm expansion screw with a depth of around 5cm

Tools required for installation:

- Marker pen

- Cross screwdriver

- Impact drill

- Tape measure

Note: Specific parameters may vary depending on the wall type. It is recommended to install the TV mount on a solid concrete wall to prevent any damage.
