Specifications:

Brand: EB-LINK

Model: The Network Card

Interface: 2 x 10G RJ45 ports

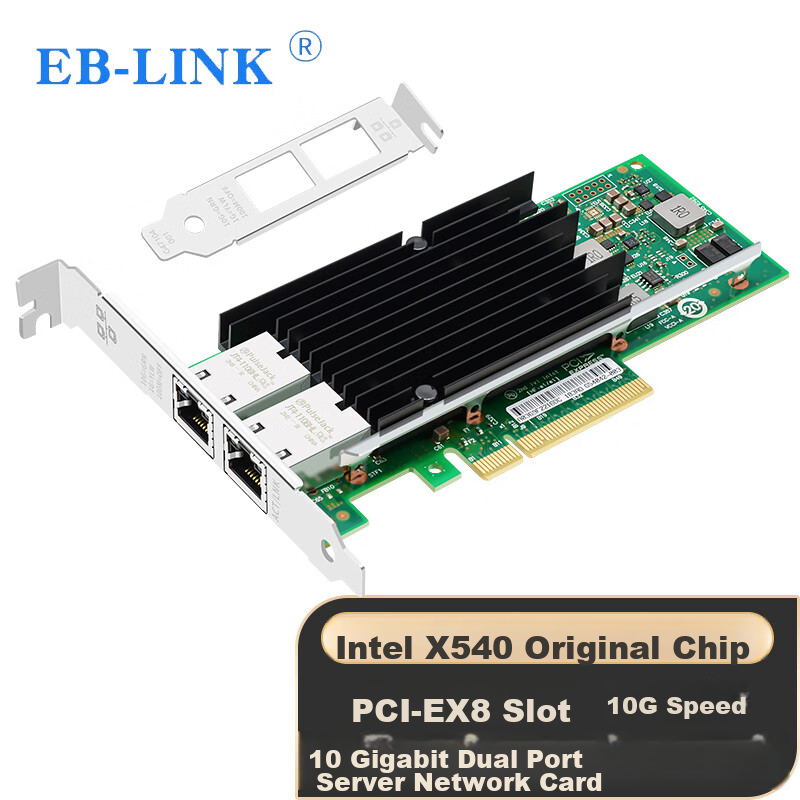

Chipset: Intel X540

Compatibility: Windows 7/8/8.1/10, Windows Server 2003/2008*R2/2012*R2/2016*R2, CentOS/RHEL, Ubuntu, FreeBSD, Linux, VMware

Features: Dual-port acceleration, RJ45 interface, load balancing, Intel X540 main control chip

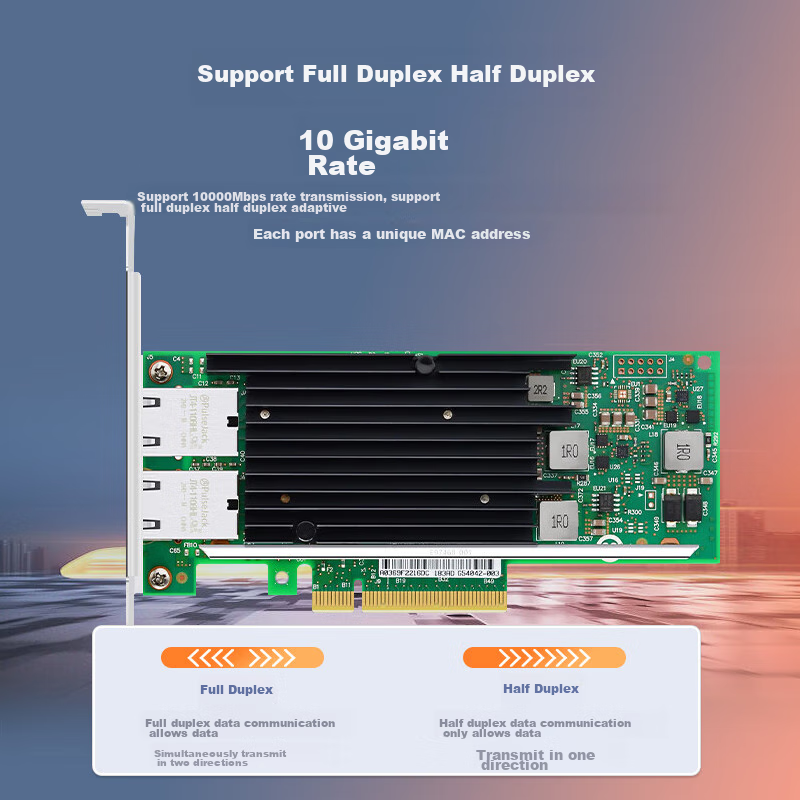

Support: Full duplex/half duplex, 100M/1000M/10Gbps speed, PCI-E v3.0 (8.0GT/s) x8 compatible with x16

LED Indicators: 10G - Green light solid on + blinking green light

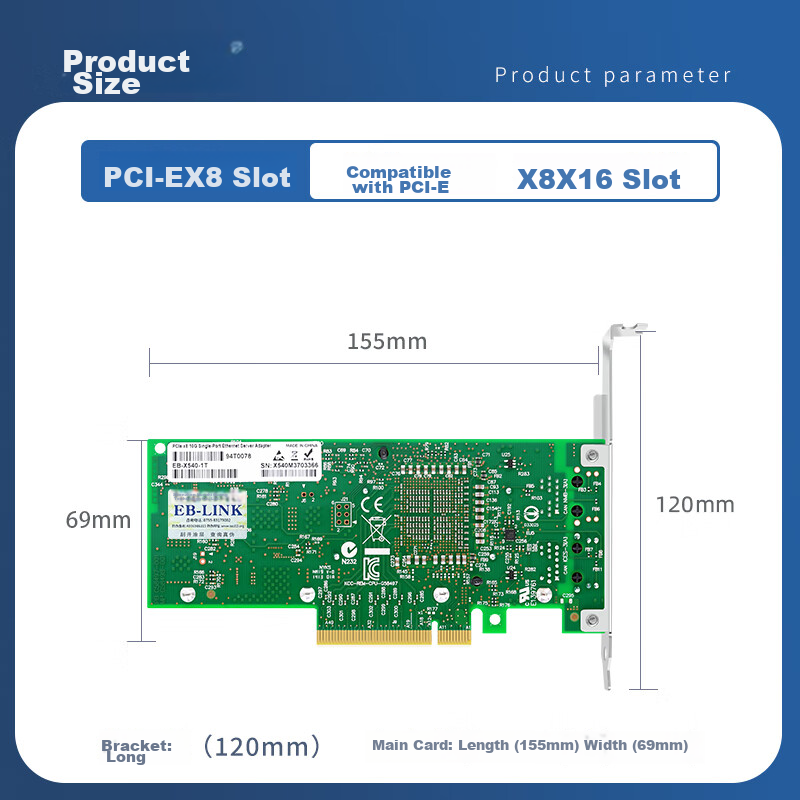

Dimensions: Bracket 120mm, Main card 155mm x 69mm

Operating Temperature: 0°C-55°C (32°F-131°F)

Storage Temperature: -25°C-65°C (-40°F-158°F)

Storage Humidity: 85% non-condensing at 35°C

Standards: IEEE 802.3an, IEEE 802.3aq, IEEE 802.3au, IEEE 802.1Q, IEEE 802.3-2005 flow control support, IEEE 802.3ad, IEEE 1588

Applications:

Industrial automation

Machine vision

Ethernet data transmission

Visual inspection

Cloud computing services

AI and AI robotics learning projects

VMware virtualization

Compatibility:

Suitable for various types of servers, industrial automation equipment, and devices

Compatible with PCI-E x8/x16 slots

Additional Features:

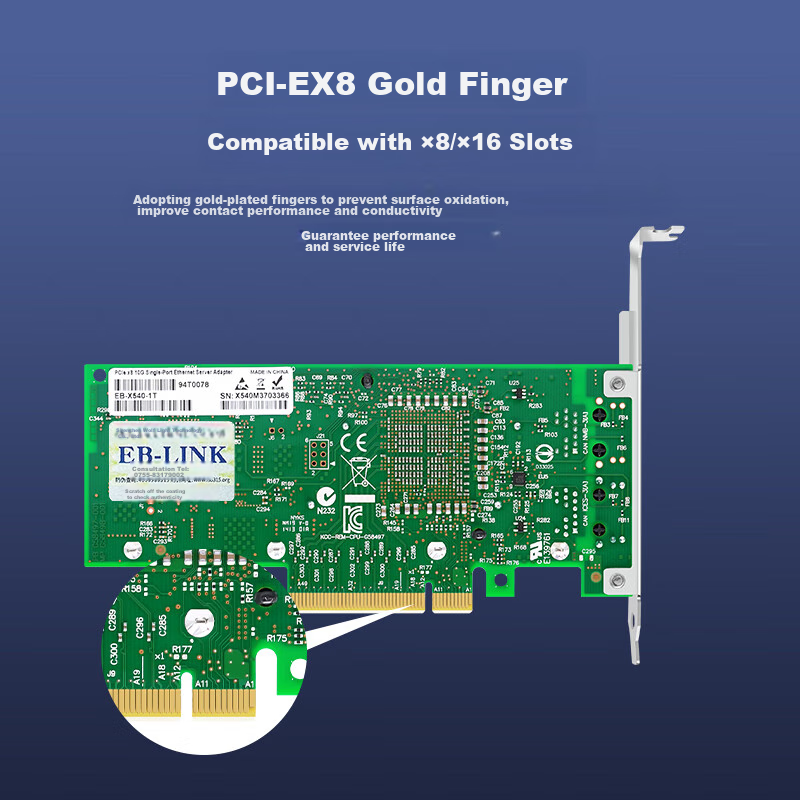

Gold-plated PCI-EX8 interface for improved contact performance

Supports different chassis sizes with full-height and half-height brackets

Supports various operating systems for efficient performance

Easy installation and setup process

Three-year manufacturer warranty

Lifetime technical support

Note: For driver installation, refer to the software provided on the CD included in the network card package or contact online customer service for assistance. Alternatively, visit the Intel official website to download the required drivers.
