Thermaltake (Tt) TR100 Black Mini Tower Water-Cooled Computer Case (ITX Motherboard, Dual-Chamber Design, Type-C Port)

4.4

54 Reviews

535.78AED

Tax :

OVERVIEW
REVIEWS

**Product Specifications:**

**Brand:** Thermaltake (Tt)

**Model:** TR100 Mini Tower Case

**Description:** The TR100 Mini Tower Case is designed for users seeking high efficiency and portability. It is a dual-chamber Mini-ITX case that supports graphics cards up to 360mm in length and is compatible with SFX or SFX-L power supplies. The case can accommodate two 120mm or 140mm fans on top and supports up to 280mm all-in-one liquid cooling. The case comes with a PCIe 4.0 graphics card extension cable with specifications: Length: 220mm, Speed: 16Gbps.

**Product Features:**

- Dual-chamber design

- Mini-ITX form factor

- Supports up to 280mm all-in-one liquid cooling

- Removable PCI-E panel

- Built-in GPU support bracket

- Compact design

**Dimensions:** 179mm x 391mm x 294mm

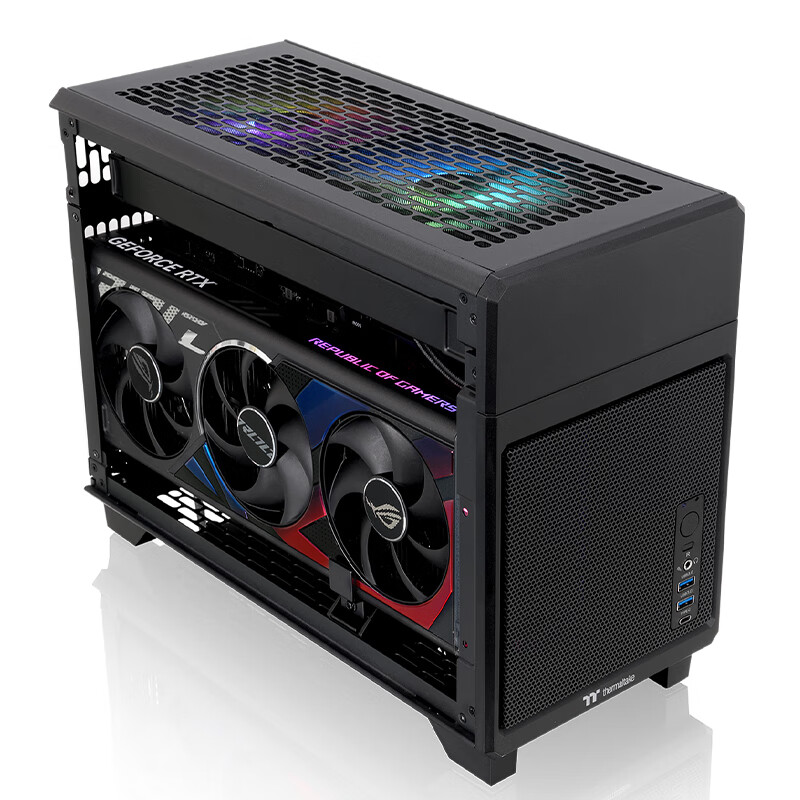

**GPU Support:** Supports graphics cards up to 360mm in length and 70mm in thickness, with a removable PCI-E panel and built-in GPU support bracket for easy installation and secure mounting.

**Cooling System:**

- Supports up to 240/280mm radiator on top (max thickness of 53mm)

- Supports CPU coolers up to 68mm in height

- Supports two 120mm or 140mm fans

**Additional Features:**

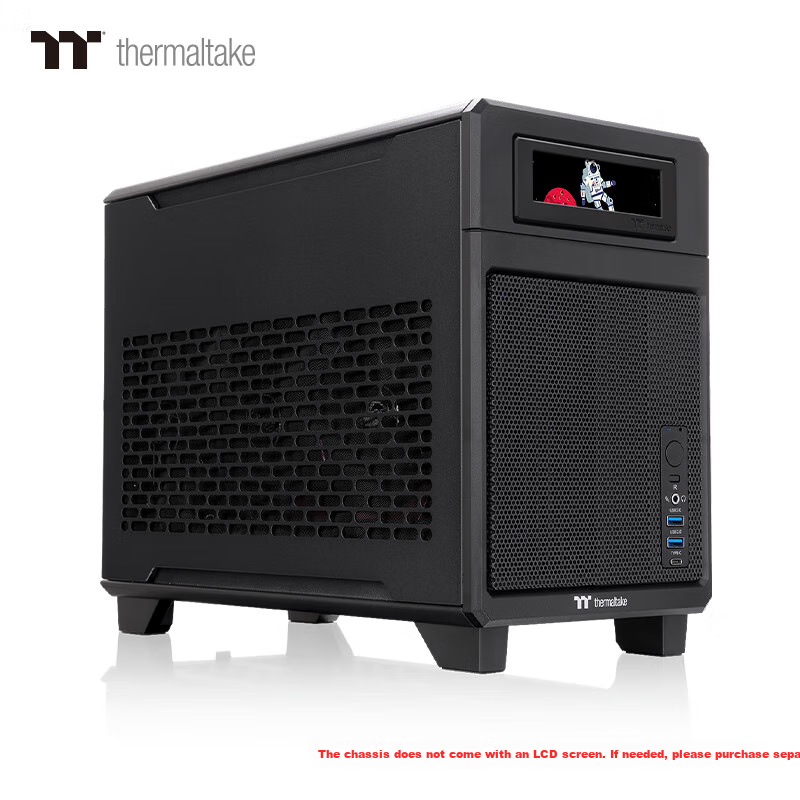

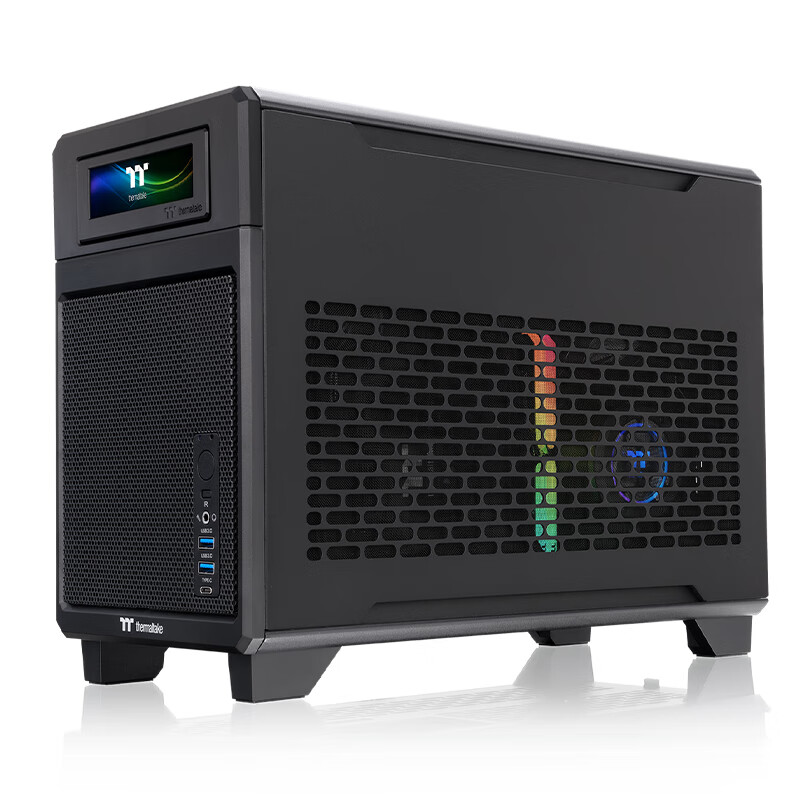

- Optional 3.9" LCD expansion screen for visual effects

- LCD screen can display real-time system information, time, local weather, and custom images or GIFs (LCD screen sold separately)

**Ventilation Design:** Features carefully designed air intake and exhaust vents to maintain low internal temperatures.

**Dust Protection:** Equipped with dust filters on the top, front, and side panels to prevent dust from entering the system.

**Hardware Support:**

- Supports CPU coolers up to 68mm in height

- Supports graphics cards up to 360mm in length and 70mm in thickness

- Supports power supplies up to 130mm in length

- Supports up to two 2.5" SSDs

**Cooling Support:**

- Top: Supports two 120mm/140mm fans or a 280mm all-in-one liquid cooler

**I/O Ports:**

- 2 x USB 3.0 Type-A

- 1 x USB 3.2 Gen 2 Type-C

- Power button

- Reset button

- HD Audio

**Product Specifications:**

- **Product Name:** TR100 Case

- **Material:** SPCC

- **Color:** Black

- **Type:** Mini Tower Case

- **Motherboard Support:** Mini ITX (6.7" x 6.7")

- **Storage:** 2 x 2.5" or 1 x 2.5"

- **I/O Ports:** 1 x USB 3.2 Type-C, 2 x USB 3.0, 1 x HD Audio

- **Fan Support:**

- Top: 120mm x 2 or 120mm x 1, 140mm x 2 or 140mm x 1

- **Liquid Cooling Support:**

- Top: 120mm x 1 or 240mm x 1, 140mm x 1 or 280mm x 1

- **Compatibility:**

- CPU Cooler Height Limit: 68mm

- GPU Length Limit: 360mm

- GPU Width Limit: 70mm

- Power Supply Length Limit: 130mm
