**Product Specifications:**

**Brand:** Thermalright

**Model:** FrozenEdge FE

**Description:** Unsheathed, pointing to the peak, +. The blade, detailed display, all-metal cold head, CNC carved texture, refining the metal's unique aura, NAS. THERMALRIGHT, surrounded by an atmospheric ARGB light ring. The fusion of design, manufacturing, and experience creates the fourth-generation water pump exclusive frame, codenamed: FROZENEDGE. THERMALRIGHT, low-vibration operation, ≤23 DBA, ceramic shaft rotor. Jet stream cavity, low thermal resistance efficient heat dissipation technology. Equipped with the non-illuminating performance benchmark TL-B12 series fan. Free to come and go, as if entering a deserted place, the fixed installation of the cold head only requires 2 screws to operate, utilizing the SS2 metal fastening system. Compatible with AMD, FORTHOSE, INTEL, *Utilizing the SS2 fastening system (excluding AK120MINI/TS120MINI/TA120EXMINI/TA140EX), other coolers using the SS2 fastening system can share the heat dissipation fasteners with the FROZENEDGE series water cooling, including all components in the package. Simplifying complexity, enhancing installation experience, pre-installed fan on the radiator. Cold head/fan light effect interface, fan PWM power HUB, both support ARGB 3PIN daisy chain, 115X/1200/17X, DC, LGA1700 fastening system, brand, brand, AM, AMD: AM4/AM5 fastening system.

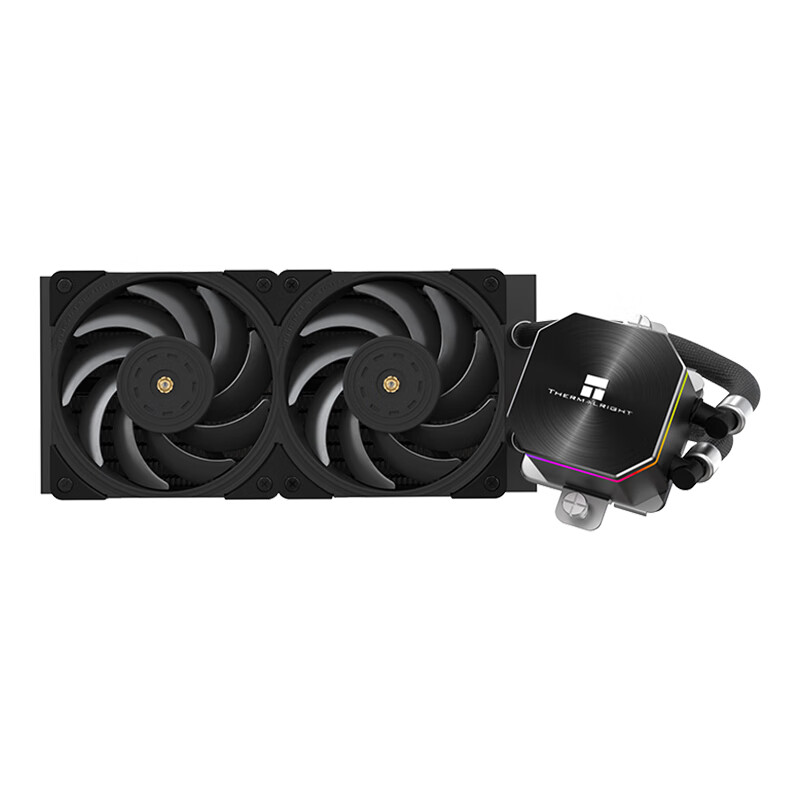

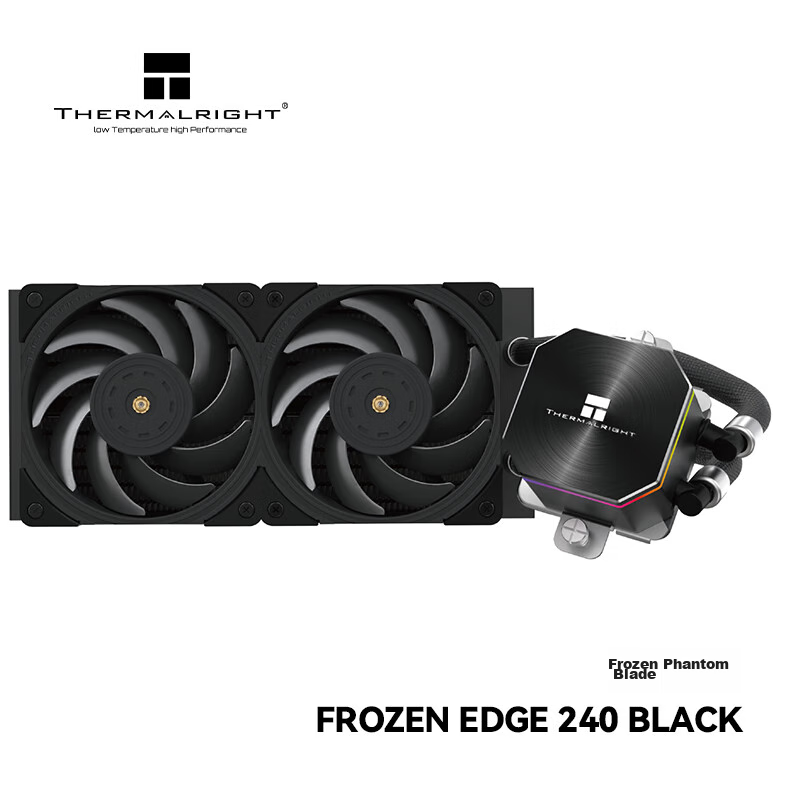

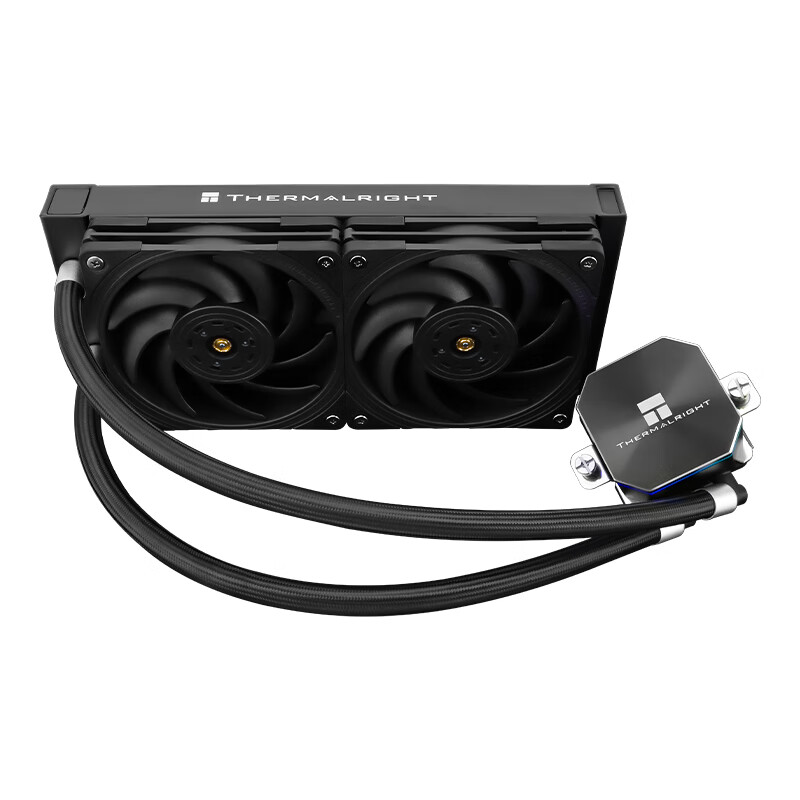

**FROZENEDGE 240 BLACK Water Cooling Radiator:**

- **Supported Platforms:** AMD: AM4/AM5

- **Dimensions:** Radiator: 277mm*120mm*27mm, Cold Head: 62mm*62mm*53mm, Tube Length: 400mm

- **Water Pump Specifications:**

- Speed: 3300RPM±10%

- Power: ≤4.8W

- Noise Level: ≤28.1dBA

- Interface: 4PIN PWM

- **TL-B12 Fan Specifications:**

- Size: 120*120*25.6mm

- Speed: 2150RPM±10% (MAX)

- Airflow: 69CFM (MAX)

- Noise Level: ≤23dBA

- Pressure: 2.87mm H2O (MAX)

- Power: ≤4.8W

- Interface: 4PIN PWM

- **ARGB Interface:** +5V/3PIN

- **Warranty:** Five years

- **Fan Bearing:** S-FDB Bearing V2

**Note:** The above data is sourced from Thermalright's laboratory and is for reference only.
