Specifications:

Brand: MOGE

Product Name: PCI-E to USB 3.0 Adapter (4-channel)

Model: MC2025

Chipset: Pericom P17C9X2G608GP + NEC upd720202 * 4

Slot Type: Desktop PCI-E x4 slot (compatible with x4, x8, x16)

Output Interface: USB 3.0 * 4

Compatible Systems: Windows XP/Vista/Win7/Win8/Win10 and other operating systems

Features:

- 20G independent 4-channel design, breaking transmission limits

- 20GB/s PCIe adapter card with 4 ports for simultaneous 5GB/s transfer

- Independent USB 3.0 channels with a performance transfer rate of 20GB/s

- 4 NEC upd720202 chips for stable and high-speed USB 3.0 transmission

- 4 power supply modules to shield electromagnetic interference and ensure data integrity and stability

- Supports simultaneous operation of four interfaces and up to 3TB hard drives

Installation Instructions:

- Step 1: Remove the two fixed screws on the side of the chassis and slide out the side cover

- Step 2: Locate the PCI-E interface on the motherboard and insert the card

- Step 3: Connect the power interface and secure the card with screws

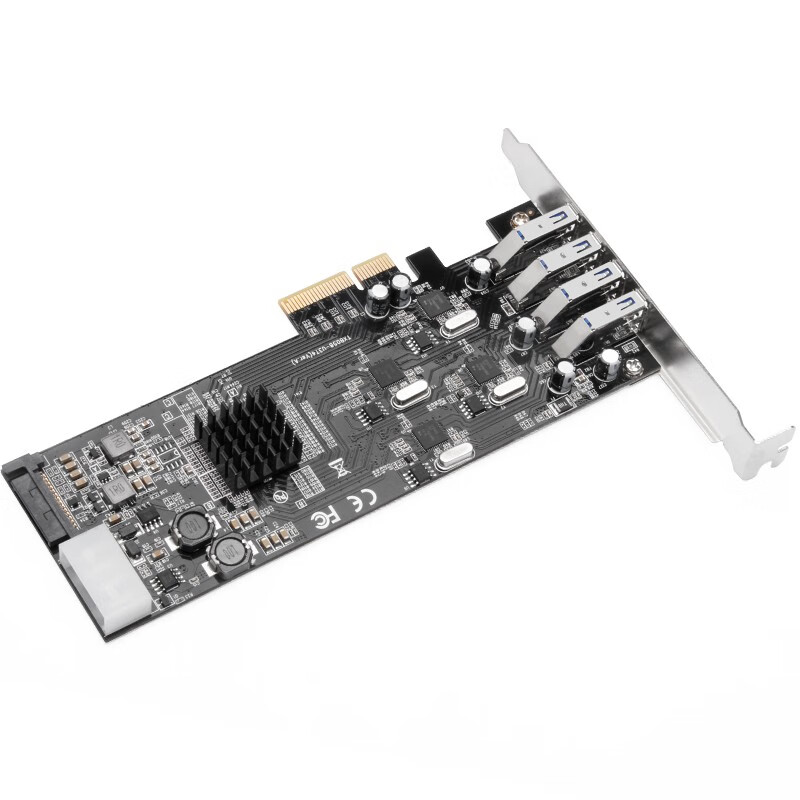

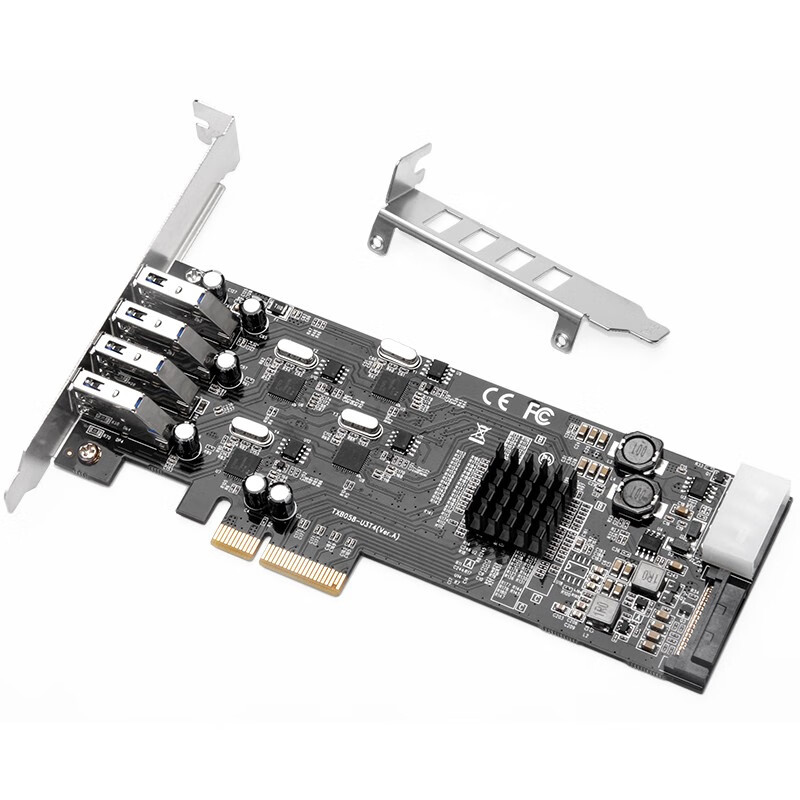

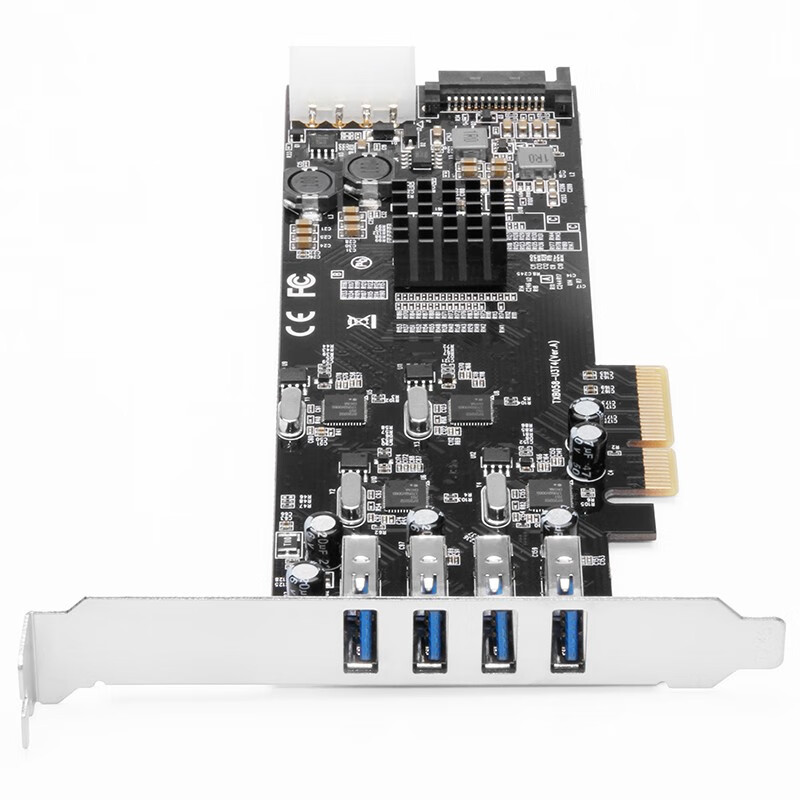

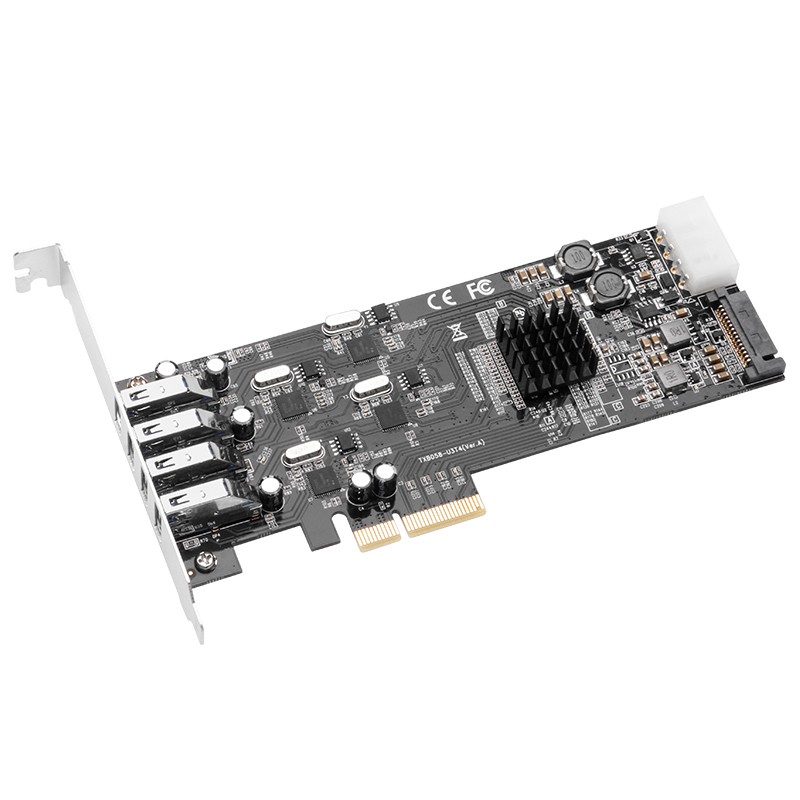

Product Display:

- Dimensions: 80mm x 145mm x 68mm

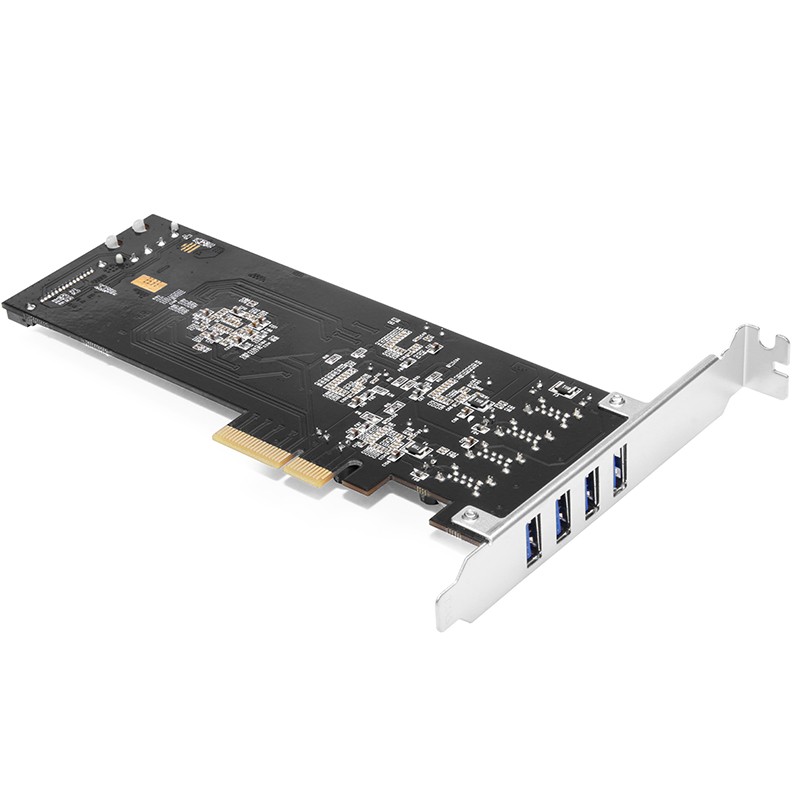

- Back view included

Please note that the product specifications include detailed information about the MOGE PCI-E to USB 3.0 Adapter, model MC2025, its features, installation instructions, and dimensions.
