**Product Specifications:**

**Brand:** FSL

**Product Name:** Core Generation II LED Ceiling Light Source Module (Built-in Type)

**Input Voltage:** 220V-50Hz

**Input Current:** 95mA

**Power Factor:** 0.5

**Rated Power:** 13W

**Color Temperature:** 6500K

**Manufacturer:** Foshan Electrical Lighting Co., Ltd.

**Year:** 2020-IV

**Product Features:**

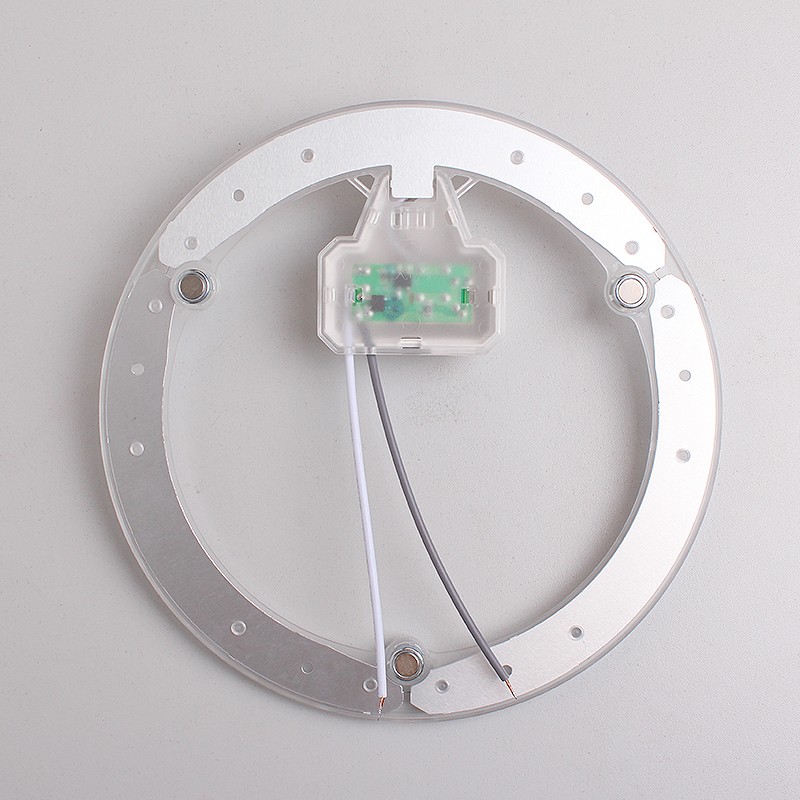

Foshan Lighting Source Transformation Board

Trigmatic Headlamp Light Source

No need for ballast, plug and play

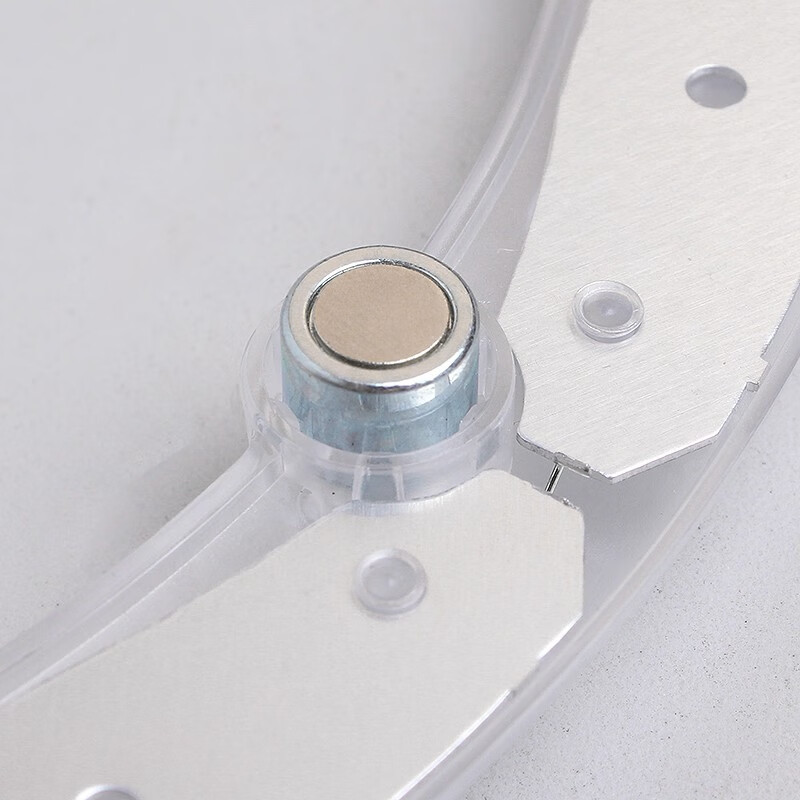

Magnetic adsorption for easy installation

Replaces traditional fluorescent tubes and bulbs with high-brightness and soft LED chips

**Product Variants:**

Core Generation Series 13W

Core Generation Series 17W

Core Generation Series 24W

**Product Advantages:**

Long lifespan and high-quality performance

High-brightness LED chips with safe constant current drive

Easy replacement with magnetic patch adsorption

Angle lens design for convenient installation

**Product Parameters:**

Diameter: 130mm (13W), 180mm (17W), 215mm (24W)

Power: 13W (15pcs LEDs), 17W (21pcs LEDs), 24W (27pcs LEDs)

Applicable Area: 3-8m², 5-10m², 8-15m²

Material: Aluminum baseboard + PC plastic

Color Temperature: White light

Chassis Specifications: 230mm, 300mm, 350mm

**Product Details:**

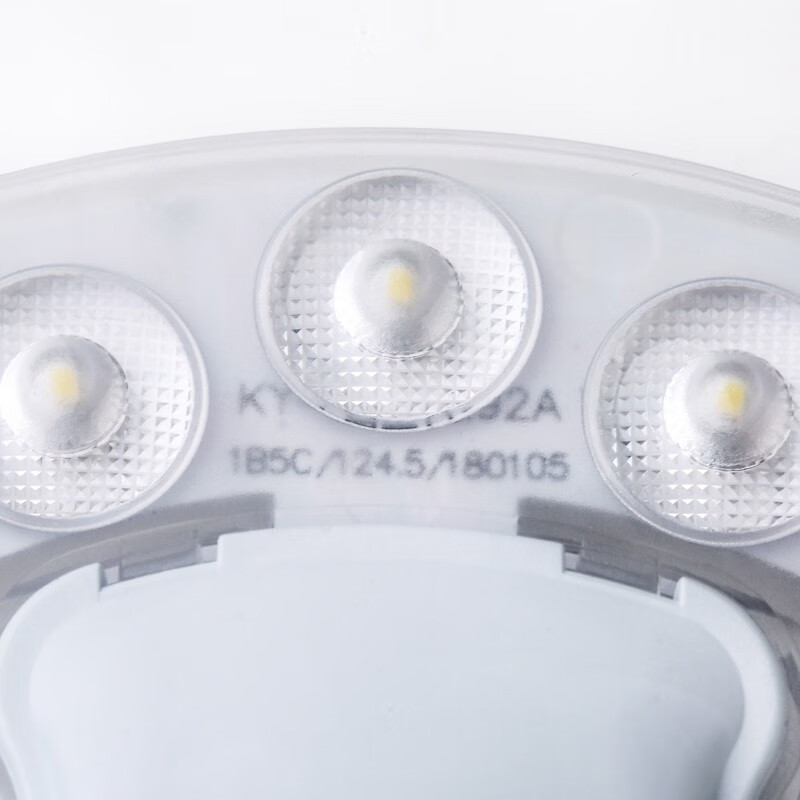

Self-developed integrated lens with angle lens for uniform illumination

Safe cover on module surface

Magnetic adsorption for easy and instant installation

High-quality LED light source module with realistic color rendering

Precautions: Ensure correct power connection to avoid short circuits and fire hazards. Check local voltage compatibility before use. Seek professional assistance for repairs.

**Note:** This product is a built-in self-ballasted module designed for internal use in lighting fixtures.
