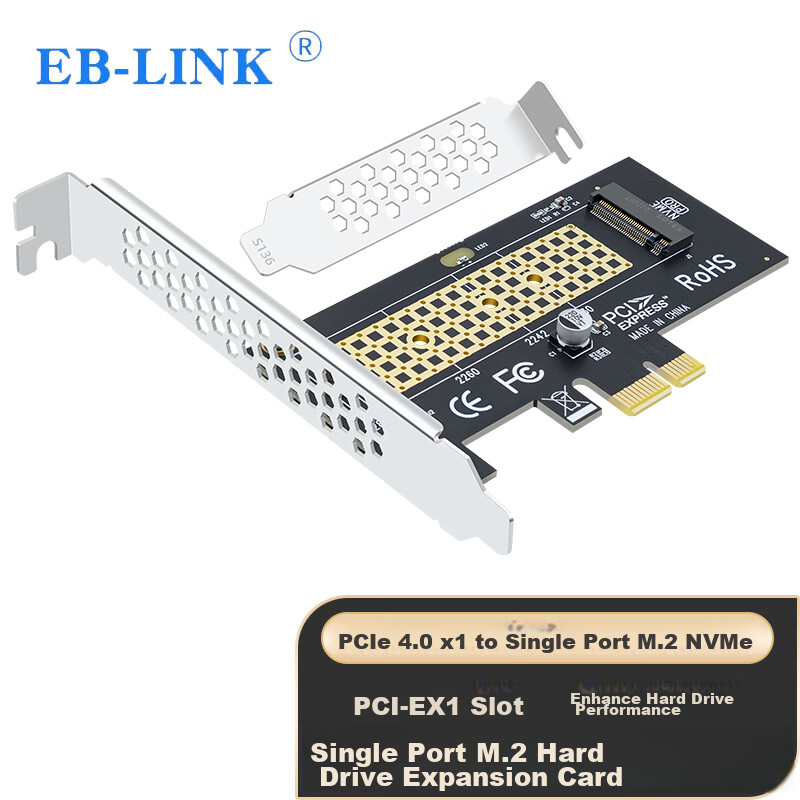

EB-LINK PCIe 4.0 X1 to M2 Expansion Card, Full-Speed Single-Port M.2 Interface, NVMe Adapter Card, SSD Solid State Drive

4.4

57 Reviews

23.25AED

Tax :

**Product Specifications:**

**Brand:** EB-LINK

**Product Name:** PCle x1 to NVMe M.2 Adapter Card

**Compatibility:** Supports NVMe SSD (2230, 2242, 2260, 2280)

**Bus Interface:** PCI Express 4.0 x1 (compatible with x4/x8/x16)

**Interface Type:** M.2 Connector

**Temperature:** Operating (0°C to 60°C), Storage (-20°C to 80°C)

**Bus Speed:** 16Gbps

**Power Supply:** PCI-E

**Input Voltage:** DC 3.3V

**Input Current:** 3A

**Driver Support:** Plug and Play, No Driver Required

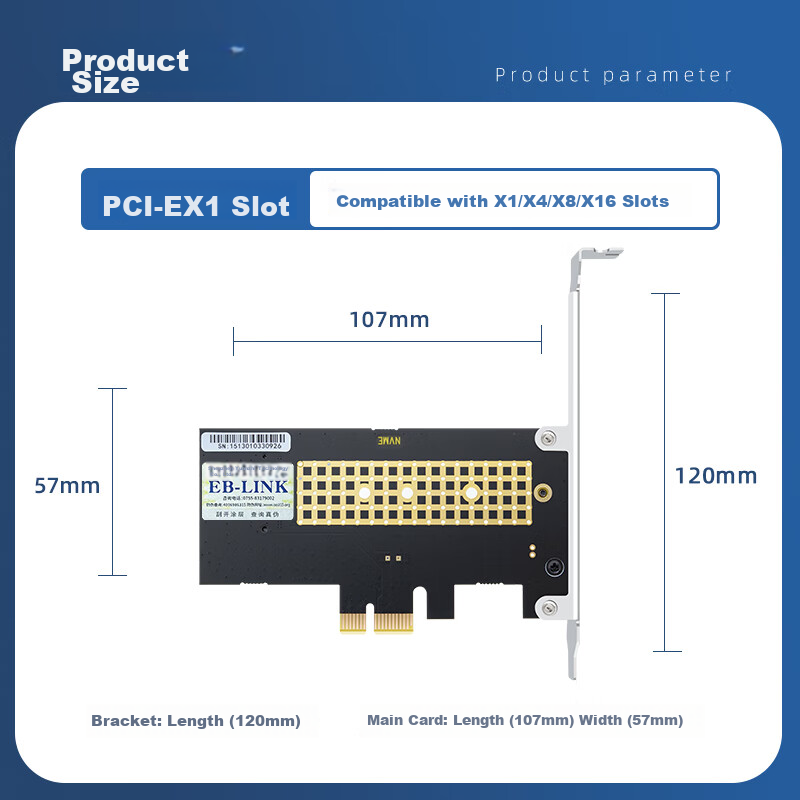

**Product Dimensions:** Main Card (107mm x 57mm), Bracket (120mm)

**Certifications:** FCC, CE, RoHS

**Manufacturer:** EB-LINK

**Manufacturer Contact:** Phone: 855017

**Features:**

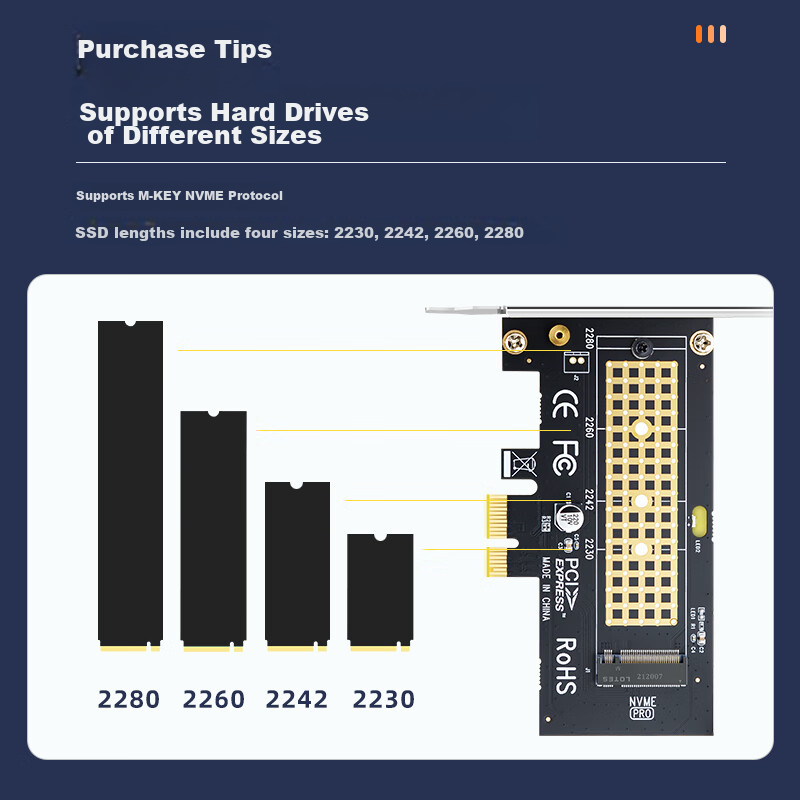

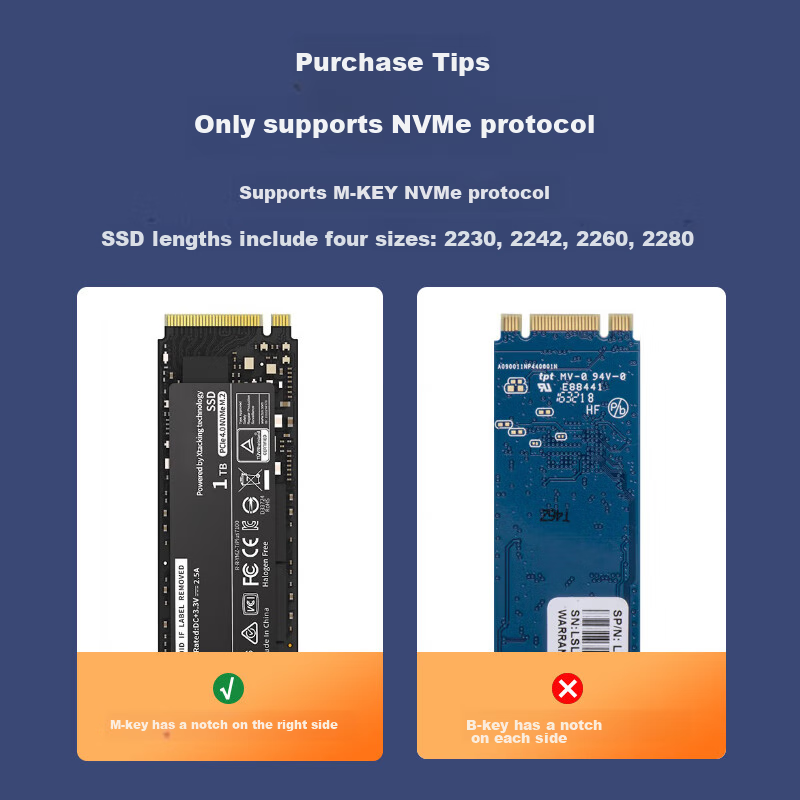

Supports M-KEY NVMe protocol SSDs with lengths including 2230, 2242, 2260, 2280

High-speed data transfer with NVMe protocol (64Gbps) and NVMe PCI-E interface

Gold-plated PCIe x1 connector for improved contact performance and longevity

Easy installation with included bracket options for different case sizes

Stable performance with high-performance chip for smooth multitasking

RoHS compliant and designed for fast and stable data transfer experience

For more detailed information, please refer to the manufacturer's website or contact EB-LINK directly.
