**Product Specifications:**

**Brand:** BUBALUS

**Model:** ，，Miniii，

**Material:** 0.8mm thick integrated molded plate

**Product Type:** Empty chassis

**Additional Accessories:** For display purposes only, please refer to physical product for details

**Sturdiness:** Made with thick and solid 0.8mm plate material, resistant to deformation

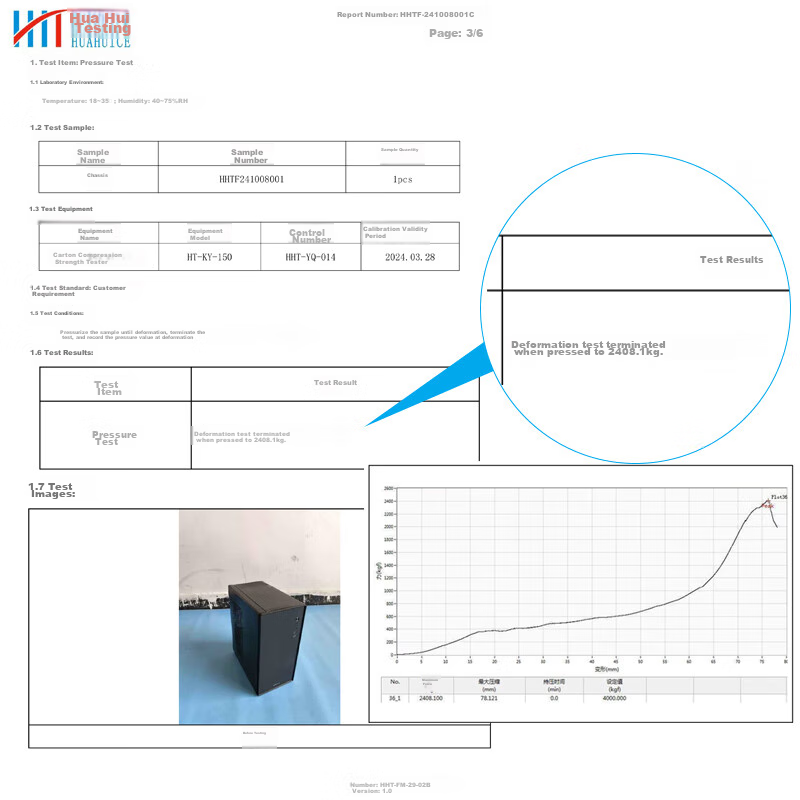

**Testing:** Conducted by HUAHUICE, report number HHTF-241008001C

- **Test Item:** Pressure test

- **Laboratory Environment:** Temperature: 18~35℃, Humidity: 40~75%RH

- **Equipment Used:** Paper box compression strength testing machine

- **Test Standard:** Customer requirements

- **Test Result:** Pressure applied until deformation occurred at 2408.1kg

**Innovative Design:** Features a solid and high-end U-shaped structure, breaking through traditional craftsmanship

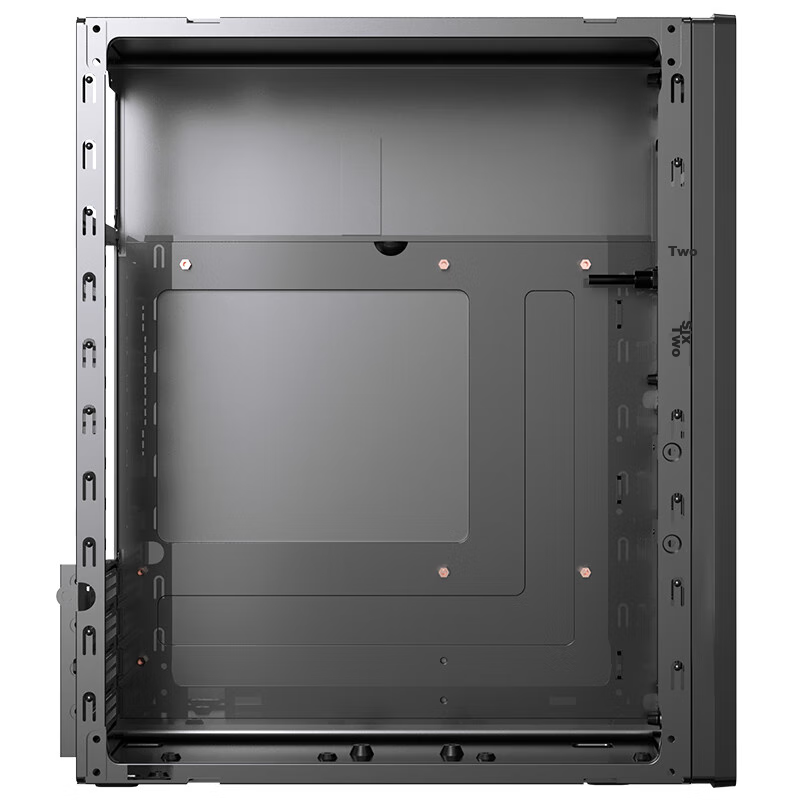

**Convenience:** Independent locking of the motherboard base plate for easy installation and stability

**Connectivity:** Front interface includes audio jacks, power buttons, restart buttons, dual audio ports, USB ports, and USB 3.0 ports

**Safety:** Kensington security slot on the left side panel to prevent theft or movement of the chassis

**Cooling System:** Efficient heat dissipation with rear fan slot and left side panel ventilation holes

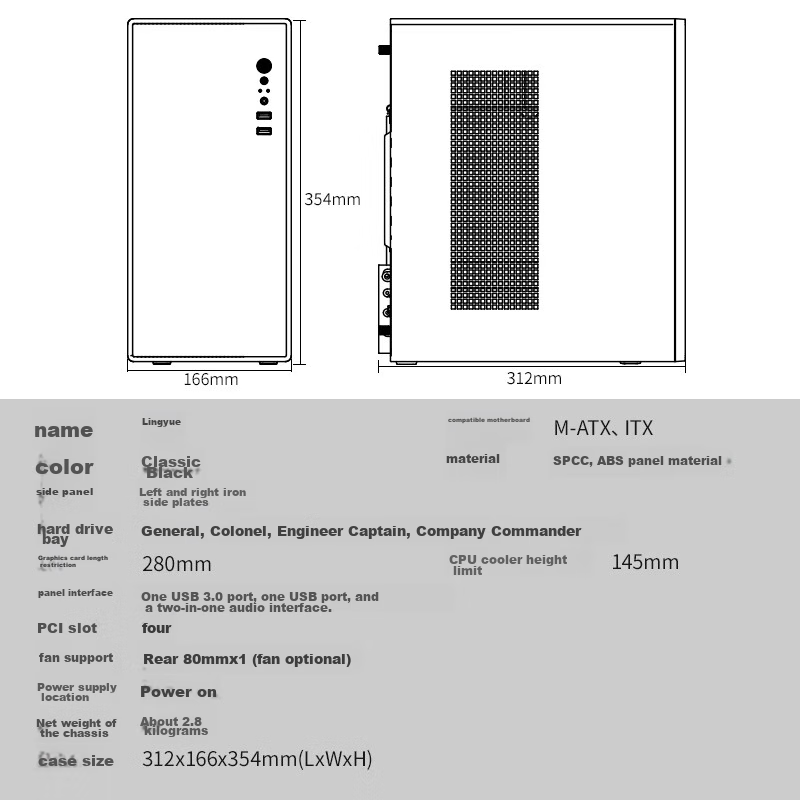

**Specifications:**

- Dimensions: 312mm x 166mm x 354mm

- Color: Classic black

- Material: SPCC, ABS panel material, iron side panels

- Motherboard Support: M-ATX, ITX

- HDD Slots: 3.5" x 2 or 3.5" x 1, 2.5" x 2

- GPU Length Limit: 280mm

- CPU Cooler Height Limit: 145mm

- Front Panel Ports: USB 3.0 x 1, USB x 1, dual audio port

- PCI Slots: 4

- Fan Support: Rear 80mm x 1 (optional)

- Power Supply Position: Top-mounted

- Net Weight: Approximately 2.8kg

**Note:** Product specifications subject to change due to upgrades or other reasons, please refer to physical product for accurate details

**Scene Display:**

**Hard Drive Installation Schemes:**

- Scheme 1: SSD x 2 + HDD x 1

- Scheme 2: HDD x 2
