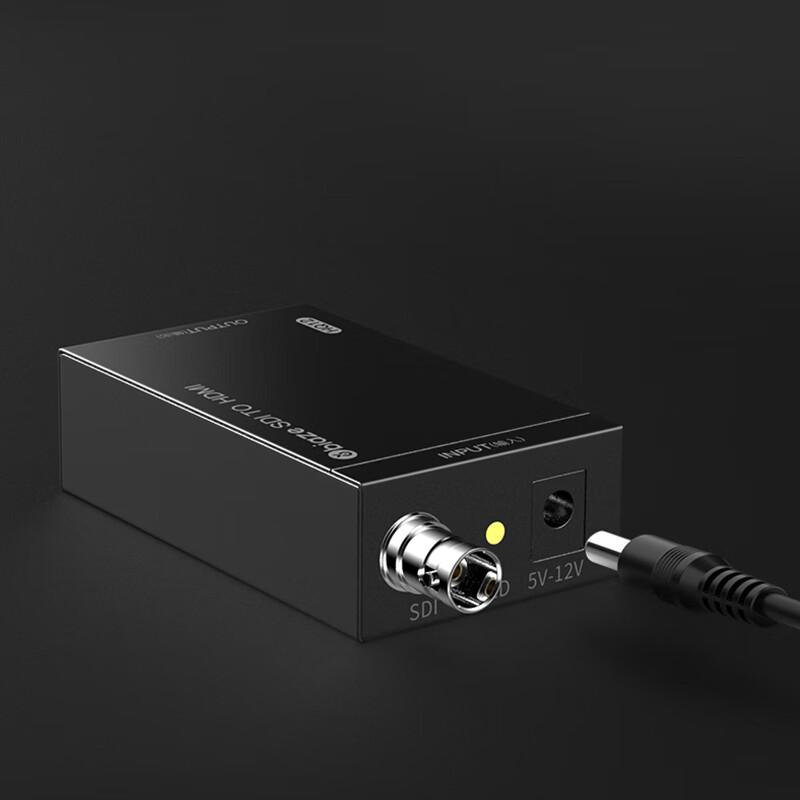

Biaze SDI to HDMI High-Definition Converter HD/3G-SDI Broadcast-Grade Audio And Video Synchronization 1080P for Surveillance Camera And TV Station Use HQ12

4.4

33 Reviews

125.55AED

Tax :

OVERVIEW
REVIEWS

**Product Specifications:**

**Brand:** BIAZE

**Product Name:** SDI to HDMI Converter

**Model:** HQ12

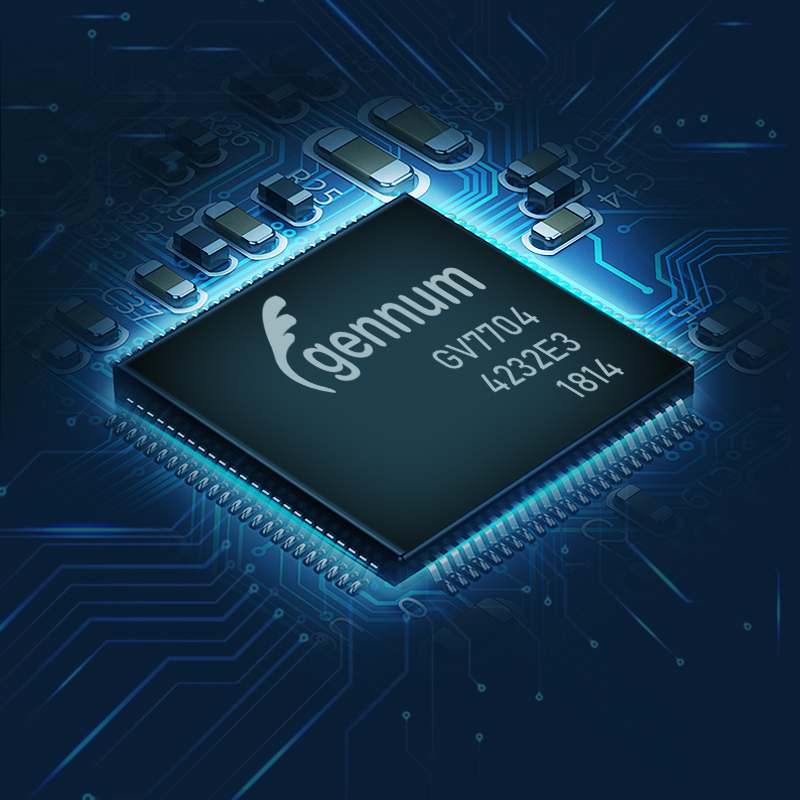

**Chip:** GV7704

**Resolution:** 1080P/60HZ

**Material:** Alloy

**Packaging:** Stylish Color Box

**Input:** BIAZE SDI to HDMI, FC, 80mm, HQ12

**Output:** 23mm x 45mm

**Description:** The high-definition HDSDI-HDMI converter is designed to convert a single high-definition digital component serial interface (HD-SDI and 3G-SDI) signal to an HDMI signal. It integrates an SDI receiver and HDMI modulator, allowing for easy conversion of SDI signals to HDMI signals while separating and embedding the audio signal from SDI into the HDMI signal for synchronous transmission of audio and video.

**Specifications:**

- Video Input Signal: High-definition digital component serial interface (HD-SDI and 3G-SDI) signal

- Video Output Signal: One HDMI signal output (1080P@60Hz)

- Audio Input Signal: Embedded in SDI

- Maximum Operating Current: 500mA

- Power Adapter Specifications: AC input (50Hz, 60Hz) 100V-240V; Output: DC5V/1A

- Operating Temperature: -15°C to +55°C

- Operating Humidity: 5% to 90% RH (non-condensing)

- Dimensions (L*W*H): 80mm x 41mm x 25mm

- Weight: 150g

- SMPTE Standards: 425M Level A&B, 424M, 292M, 259M-C

- SDI Transmission Rate: 2.970 Gbit/s and 2.970/1.001 Gbit/s

- Bandwidth: 225MHz/1ink (HDMI 1.3)

- Input/Output Resolution Support: 720p@50/60, 1080P@50/60

- Input: 1 x BNC (HD-SDI/3G-SDI)

- Output: 1 x HDMI

- Power: 5VDC/1A or DC12V/500mA

- ESD Protection: ±8kV (air-gap discharge), ±4kV (contact discharge)

- SDI Cable Length: 3G up to 100M (BELDEN 1694A), HD up to 200M (BELDEN 1694A)

**Applications:**

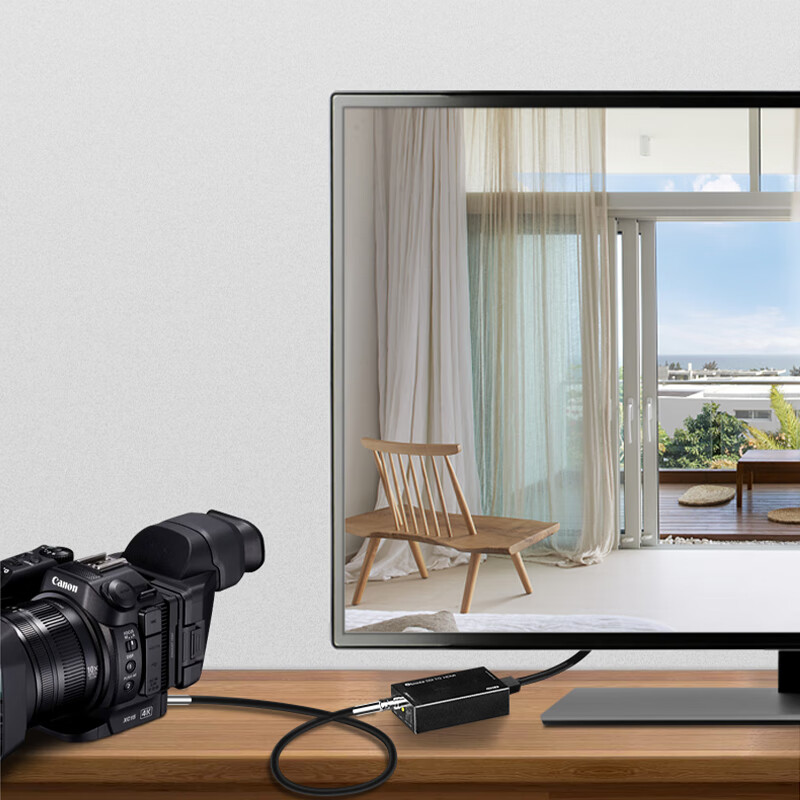

- Widely used in home theaters, security monitoring, video conferencing, multimedia teaching, etc.

**Features:**

- High performance with low power consumption

- Enhanced signal transmission over long distances

- Instant conversion with no delay

- Stable heat dissipation with a metal shell design

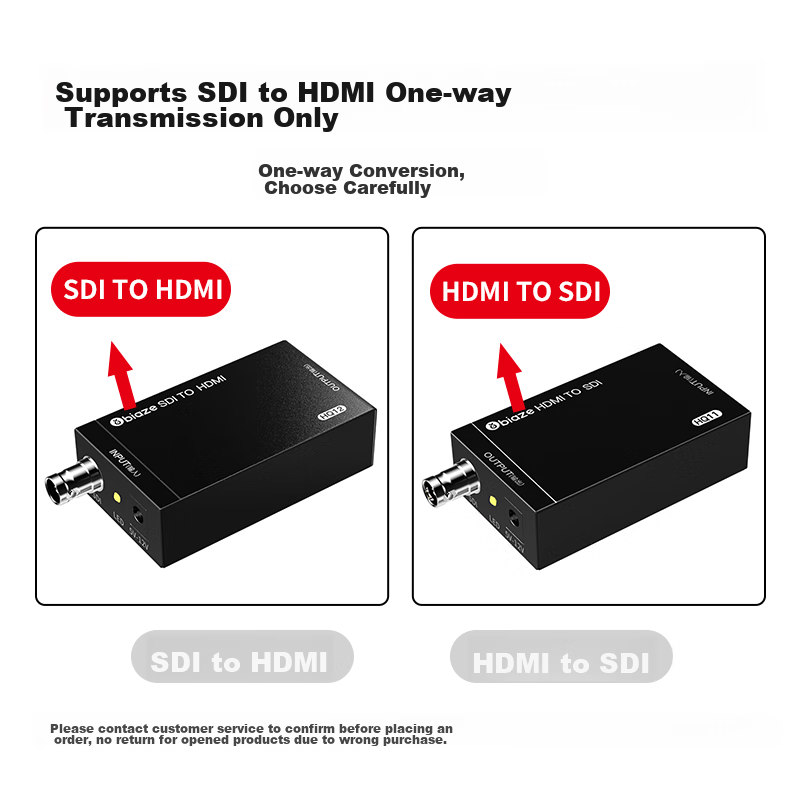

**Note:** This product supports only one-way SDI to HDMI transmission and does not support reverse usage.

**Quality Assurance:**

- Advanced production standards and quality testing

- Reliable brand with a focus on digital products

- Third-party quality testing for peace of mind

**Certifications:** National certification reports ensuring the use of quality materials

**Production Facilities:** Precision manufacturing equipment, quality testing center, and professional warehousing and logistics base to ensure product quality

**Dedication:** Committed to providing high-quality 3C digital products

**Attention:** Contact customer service before ordering to avoid purchasing errors as opened products are not eligible for return.
